WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

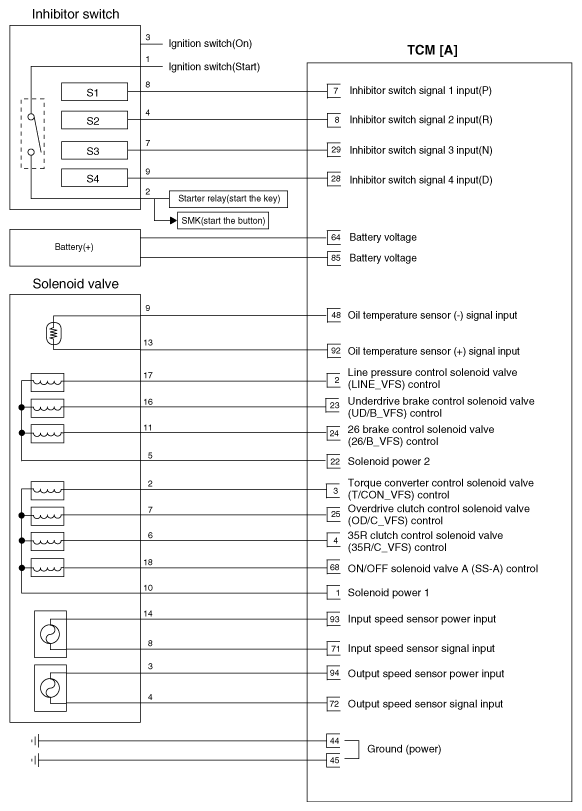

Fig 1: Transaxle Control Module Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Transaxle Control Module Circuit Diagram (2 Of 2)
