Components and Components Location: Components
WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

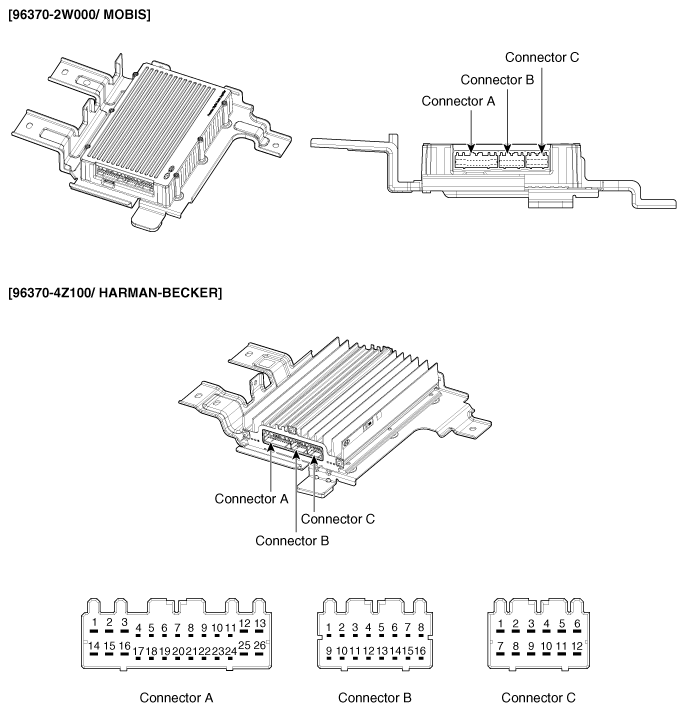

CONNECTOR PIN INFORMATION
| No | Connector A (26 pin) | Connector B (16 pin) | Connector C (12 pin) |
|---|---|---|---|
| 1 | Battery + | Right surround speaker + | Rear right door + |
| 2 | Battery + | Left surround speaker + | Rear left door speaker + |
| 3 | Battery + | - | Front right tweeter speaker + |
| 4 | - | - | Front left tweeter speaker + |
| 5 | CAN + | - | Front right door speaker + |
| 6 | CAN - | - | Rear left door speaker + |
| 7 | ACC | Front center speaker + | Rear right door speaker - |
| 8 | - | - | Rear left door speaker - |
| 9 | - | Right surround speaker - | Front right tweeter speaker - |
| 10 | - | Left surround speaker - | Front left tweeter speaker - |
| 11 | Navigation voice + | - | Front right door speaker - |
| 12 | Subwoofer 2 + | - | Rear left door speaker - |
| 13 | Subwoofer 1 + | - | |
| 14 | Ground | - | |
| 15 | Ground | Front center speaker - | |
| 16 | Ground | - | |
| 17 | - | ||
| 18 | SPDIF + | ||
| 19 | SPDIF - | ||
| 20 | SPDIF ground | ||
| 21 | - | ||
| 22 | - | ||
| 23 | - | ||
| 24 | Navigation voice - | ||
| 25 | Subwoofer 2 - | ||
| 26 | Subwoofer 1 - |
