Components And Components Location: Components

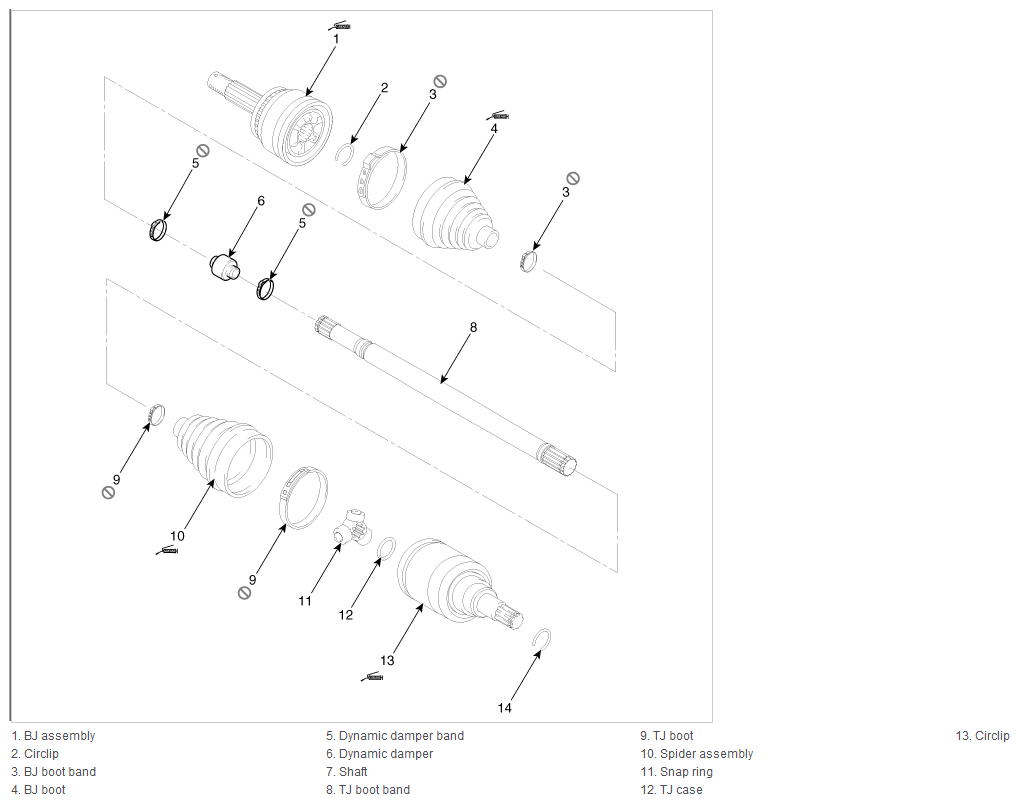

Fig 1: Exploded View Of Dynamic Damper Components
G12089273Courtesy of HYUNDAI MOTOR AMERICA
