Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis (Single Page) › Engine Mechanical › Cooling Fan › Engine Cooling System › Water Temperature Control Assembly › Components And Components Location › Components

Components And Components Location: Components

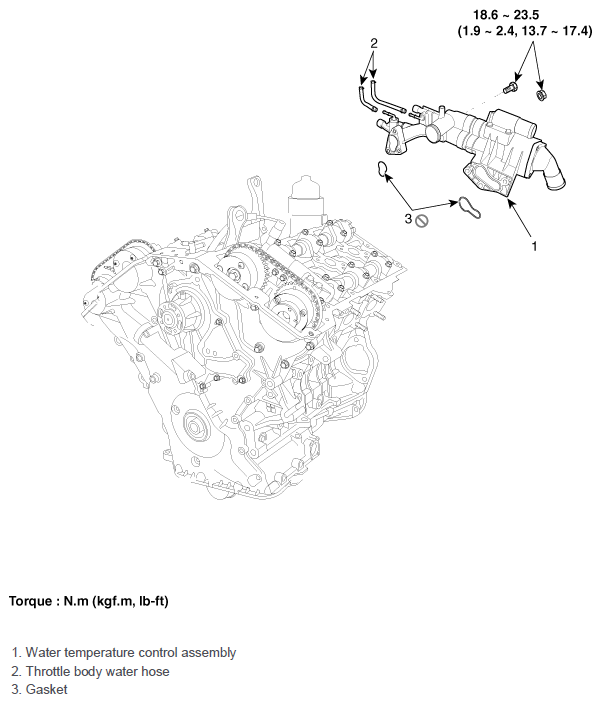

Fig 1: Water Temperature Control Assembly Components With Torque Specification
G12087006Courtesy of HYUNDAI MOTOR AMERICA
