Components And Components: Components

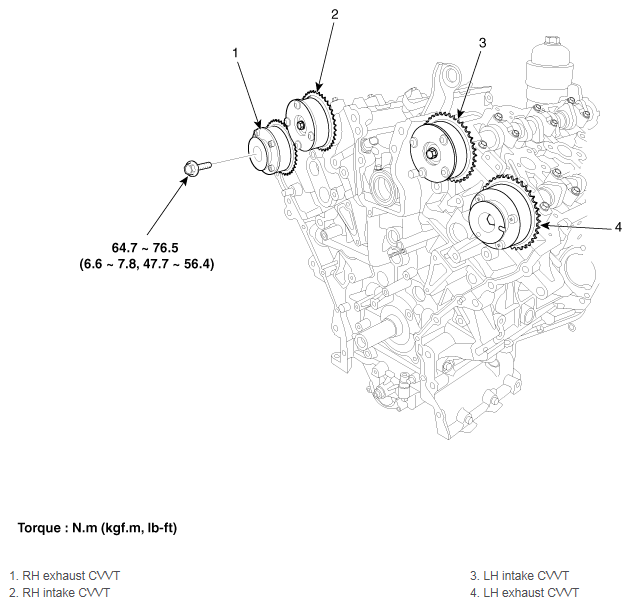

Fig 1: CVVT Assembly Components With Torque Specification
G12089036Courtesy of HYUNDAI MOTOR AMERICA
