General Information: General Description

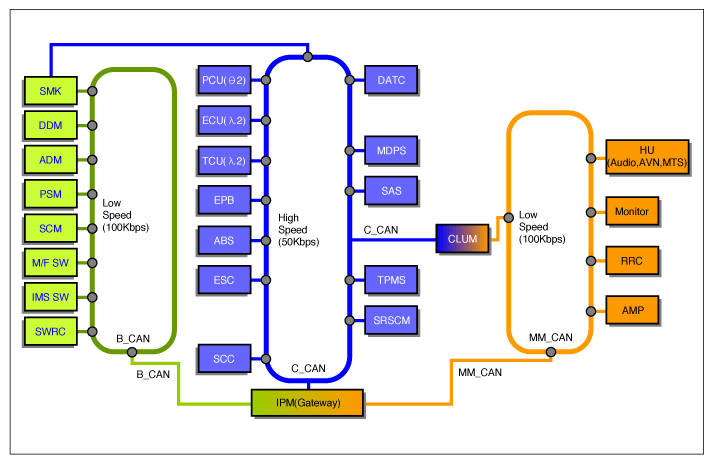

All 6 units which consists of the Body Electrical Control System are linked by MM CAN line.
They are IPM (Intelligent integrated Platform Module), CLU (Cluster), HU (Head Unit), Monitor, RRC (Rear Remote Control), AMP (Amplifier).
MM (MultiMedia) CAN (Controller Area Network): MM (MultiMedia) CAN is serial bus communication type which links not only communication system but also control units each other.
IPM: Intelligent integrated Platform Module SMK: Smart Key DDM: Driver Door Module ADM: Assistant Door Module PSM: Power Seat Module MFSW: Multi-Function Switch SWRC: Steering Wheel Remote Controller IMS SW: Integrated Memory System Switch SCM: Steering Column Module PCU: Power-train Control Unit ECU: Engine Control Unit EPB: Electronic Parking Brake ABS: Anti-lock Brake System ESC: Electronic Stability Control SCC: Smart Cruise Control CLUM: Cluster Module DATC: Dual Automatic Temp. Control SCC: Smart Cruise Control MDPS: Motor Driven Power Steering SAS: Steering Angle Sensor TPMS: Tire Pressure Monitoring System SRSCM: Supplemental Restraints System Control Module HU: Head Unit RRC: Rear Remote Control AMP: Amplifier
