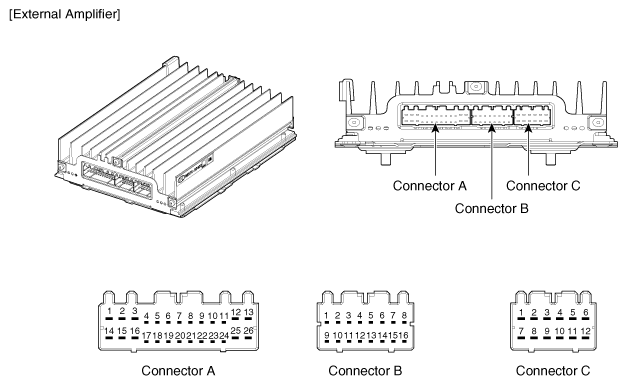

Components And Components Location: Components
Courtesy of HYUNDAI MOTOR AMERICA
| Pin No. |
Pin name |
Function |
Power [W] |
| A1 |
Battery + |
power input |
10A |
| A2 |
Battery + |
power input |
10A |
| A3 |
Battery + |
power input |
10A |
| A4 |
- |
no connect |
- |
| A5 |
CAN + |
CAN + |
20mA |
| A6 |
CAN - |
CAN - |
20mA |
| A7 |
ACC |
ACC/IGN input (on/off) |
10mA |
| A8 |
- |
no connect |
- |
| A9 |
- |
no connect |
- |
| A10 |
- |
no connect |
- |
| A11 |
NAVI + |
NAVI analog input + |
10mA |
| A12 |
Subwoofer 2 + |
speaker output + |
30W |
| A13 |
Subwoofer 1 + |
speaker output + |
30W |
| A14 |
GND |
power GND |
10A |
| A15 |
GND |
power GND |
10A |
| A16 |
GND |
power GND |
10A |
| A17 |
- |
no connect |
- |
| A18 |
SPDIF+ |
RS-485(+) |
20mA |
| A19 |
SPDIF- |
RS-485(-) |
20mA |
| A20 |
SPDIF GND |
RS-485 shield GND |
20mA |
| A21 |
- |
no connect |
- |
| A22 |
- |
no connect |
- |
| A23 |
- |
no connect |
- |
| A24 |
NAVI - |
NAVI analog input - |
10mA |
| A25 |
Subwoofer 2 - |
speaker output - |
30W |
| A26 |
Subwoofer 1 - |
speaker output - |
30W |
| B1 |
Right Surround + |
Speaker output + |
30W |
| B2 |
Left Surround + |
Speaker output + |
30W |
| B3 |
Right Side Mid/High |
+ Speaker output + |
30W |
| B4 |
Left Side Mid/High |
+ Speaker output + |
30W |
| B5 |
- |
No connect |
- |
| B6 |
- |
No connect |
- |
| B7 |
Front Center + |
Speaker output + |
30W |
| B8 |
NC |
No connect |
- |
| B9 |
Right Surround - |
Speaker output - |
30W |
| B10 |
Left Surround - |
Speaker output - |
30W |
| B11 |
Right Side Mid/High - |
Speaker output - |
30W |
| B12 |
Left Side Mid/High - |
Speaker output - |
30W |
| B13 |
- |
No connect |
- |
| B14 |
- |
No connect |
- |
| B15 |
Front Center - |
Speaker output - |
30W |
| B16 |
- |
No connect |
- |
| C1 |
Right Side Low + |
Speaker output + |
33W |
| C2 |
Left Side Low + |
Speaker output + |
33W |
| C3 |
Right Front High + |
Speaker output + |
40W |
| C4 |
Left Front High + |
Speaker output + |
40W |
| C5 |
Right Front Low + |
Speaker output + |
33W |
| C6 |
Left Front Low + |
Speaker output + |
33W |
| C7 |
Right Side Low - |
Speaker output - |
33W |
| C8 |
Left Side Low - |
Speaker output - |
33W |
| C9 |
Right Front High - |
Speaker output - |
40W |
| C10 |
Left Front High - |
Speaker output - |
40W |
| C11 |
Right Front Low - |
Speaker output - |
33W |
| C12 |
Left Front Low + |
Speaker output - |
33W |
