Circuit Diagram

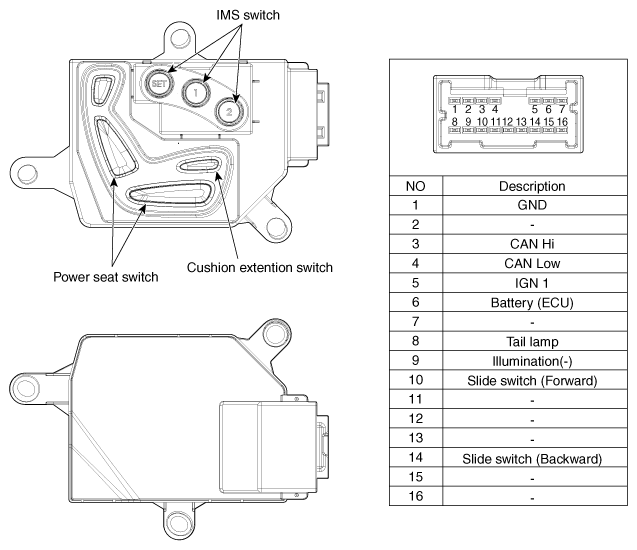

Fig 1: IMS Power Seat Control Connector Terminals
G12091861Courtesy of HYUNDAI MOTOR AMERICA

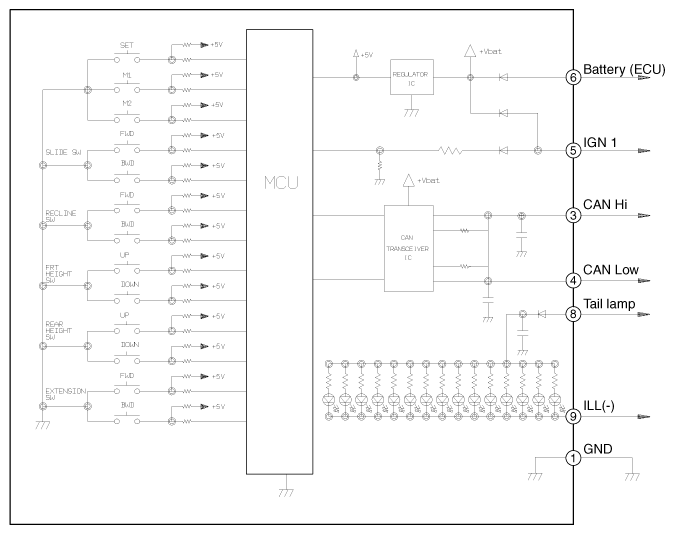

Fig 2: IMS Power Seat Control Circuit Diagram
G12091862Courtesy of HYUNDAI MOTOR AMERICA
