Front Body B
Front Body B

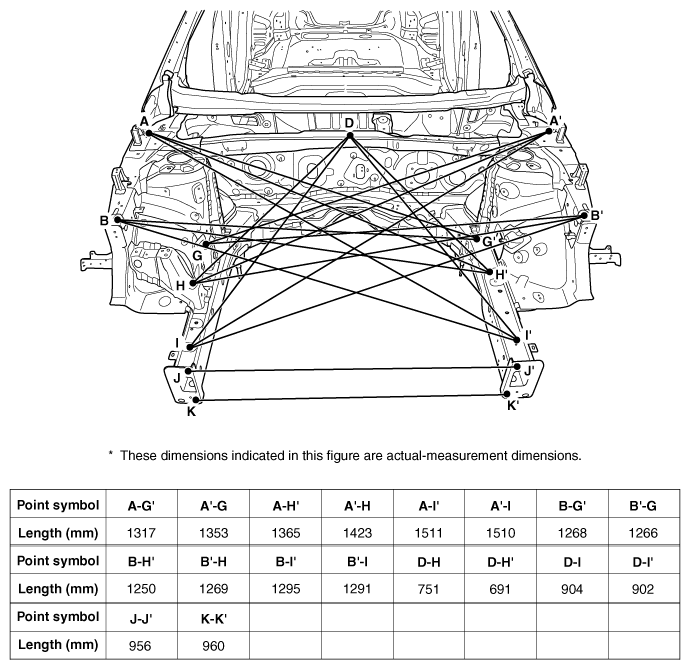

Fig 1: Front Body B Measurement Points
Courtesy of HYUNDAI MOTOR AMERICA

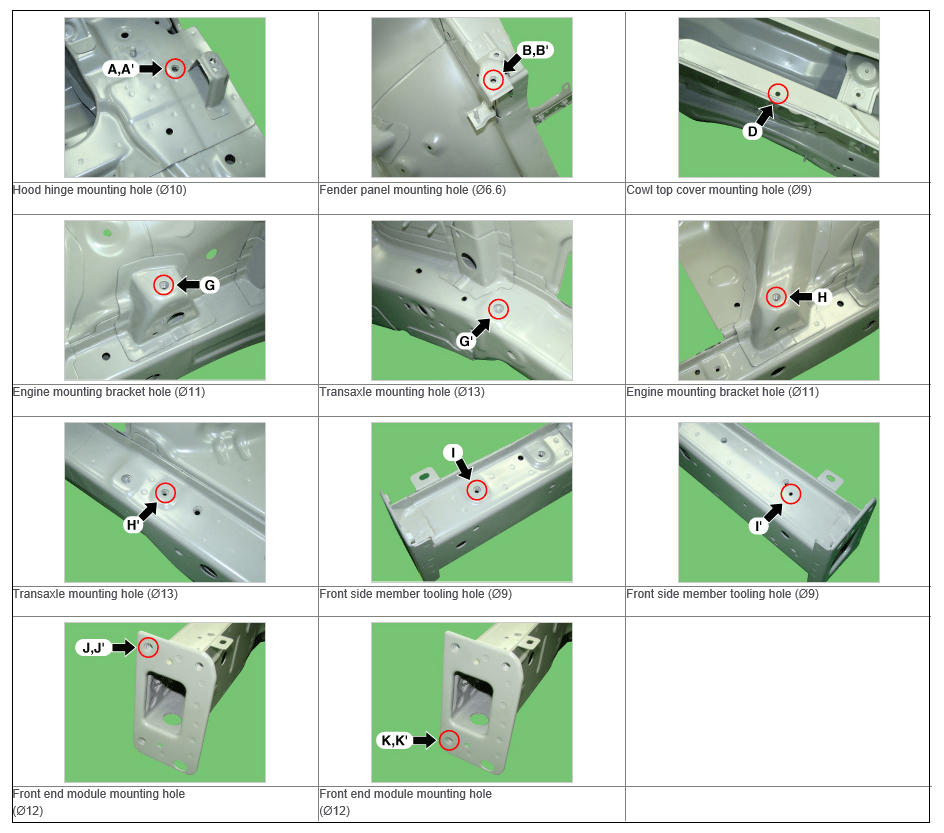

Fig 2: Locating Front Body B Mounting Holes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
