Front Body C
Front Body C

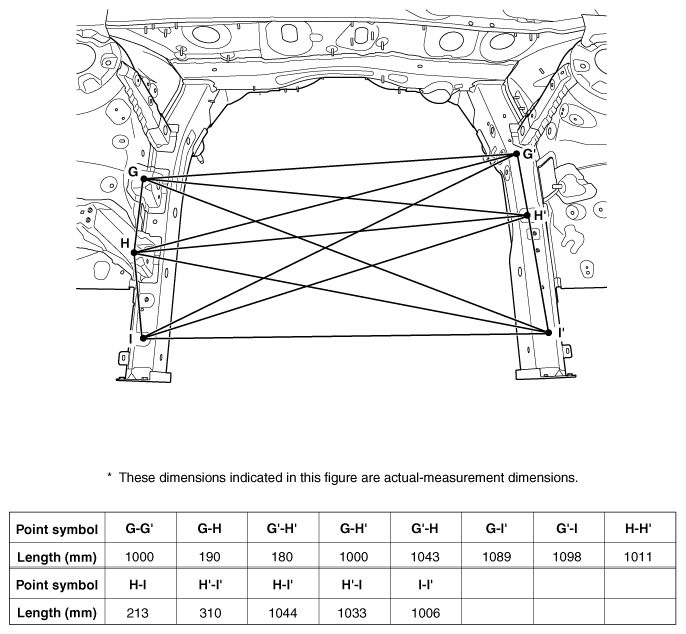

Fig 1: Front Body C Measurement Points
Courtesy of HYUNDAI MOTOR AMERICA

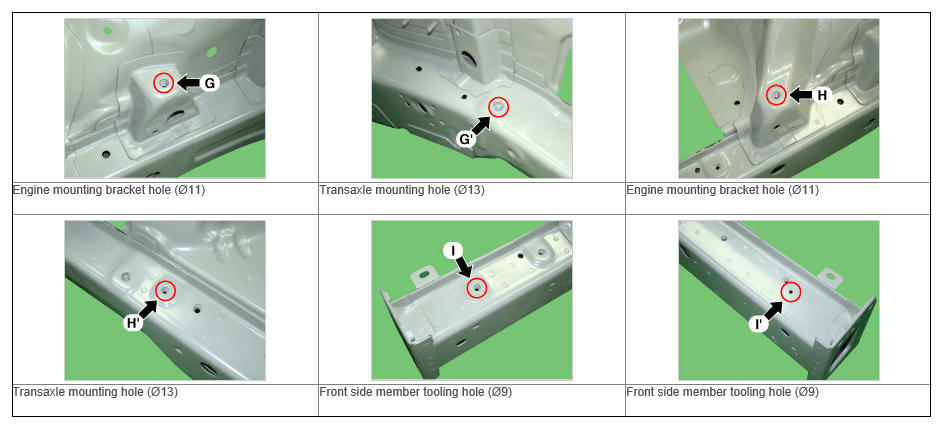

Fig 2: Locating Front Body C Mounting Holes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
