Interior C

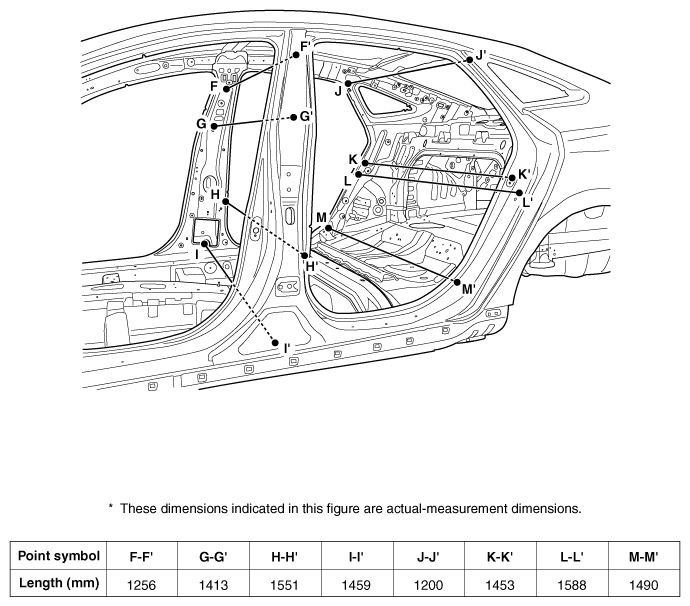

Fig 1: Interior C Measurement Points
G12091215Courtesy of HYUNDAI MOTOR AMERICA

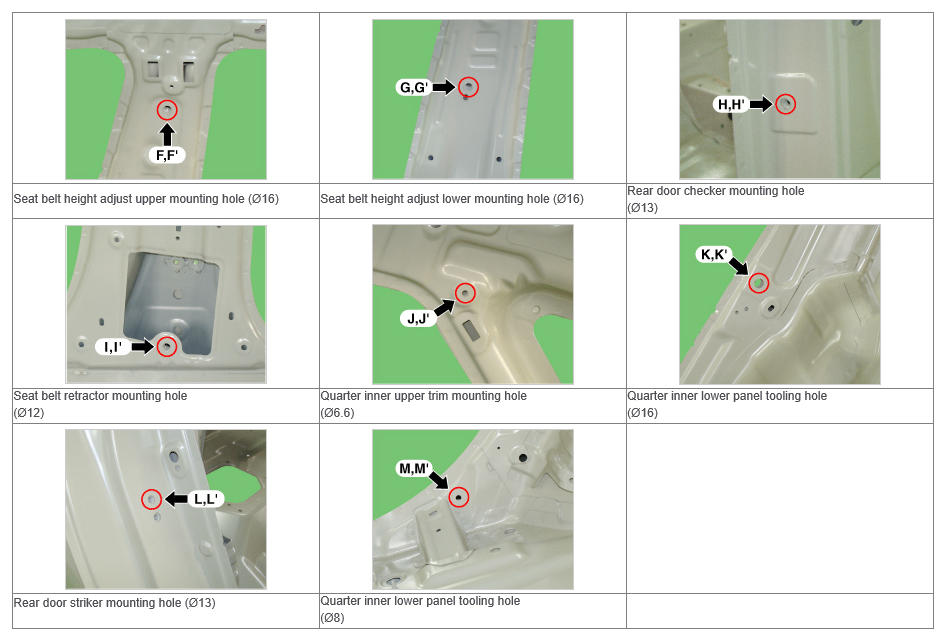

Fig 2: Locating Interior C Mounting Holes
G12091216Courtesy of HYUNDAI MOTOR AMERICA
