Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Body & Frame › Mirrors › Electro Chromic Inside Rear View Mirror › Components And Components Location › Components(1)

Components And Components Location: Components(1)

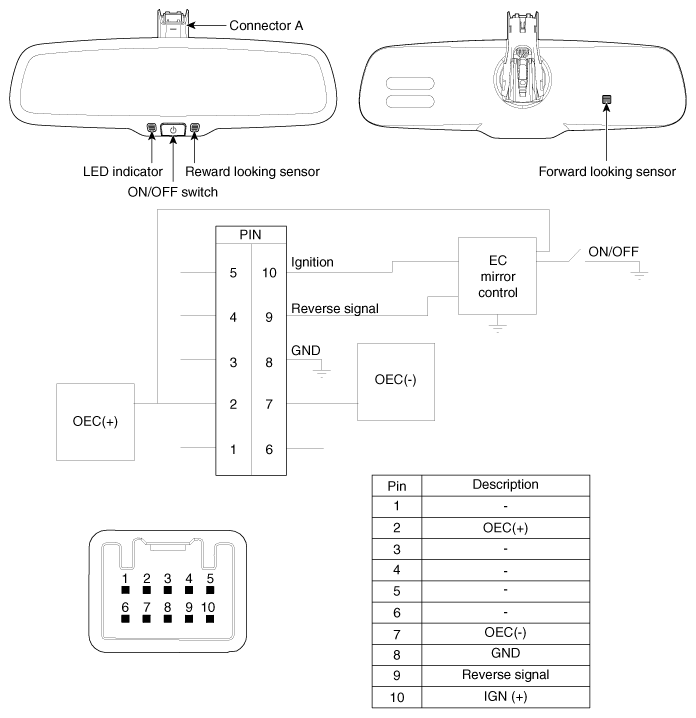

Fig 1: Electro Chromic Inside Rear View Mirror Connector Description Chart (1)
G12093127Courtesy of HYUNDAI MOTOR AMERICA
