Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Body & Frame › Mirrors › Electro Chromic Inside Rear View Mirror › Components And Components Location › Components(2)

Components And Components Location: Components(2)

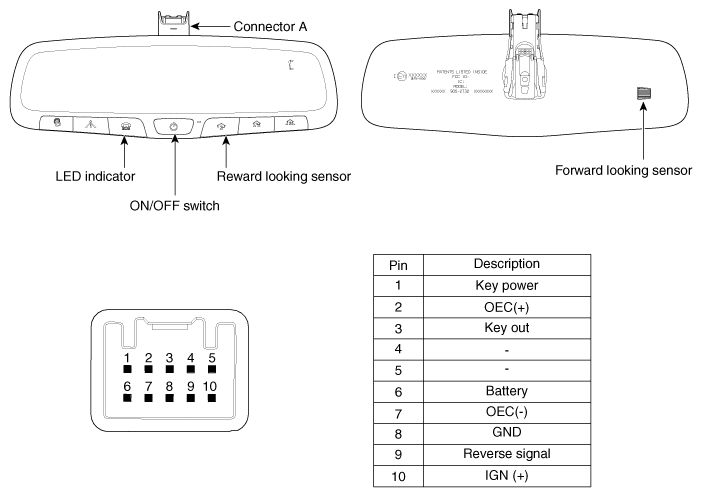

Fig 1: Electro Chromic Inside Rear View Mirror Connector Description Chart (2)
G12093128Courtesy of HYUNDAI MOTOR AMERICA
