Components And Components Location: Components

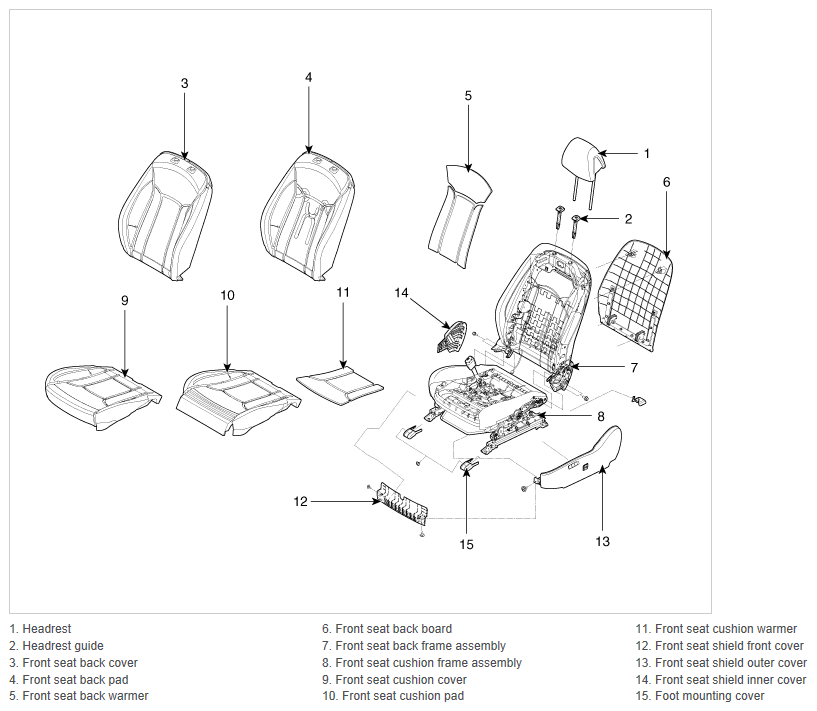

Fig 1: Front Seat Components
G12091535Courtesy of HYUNDAI MOTOR AMERICA
