Component Location

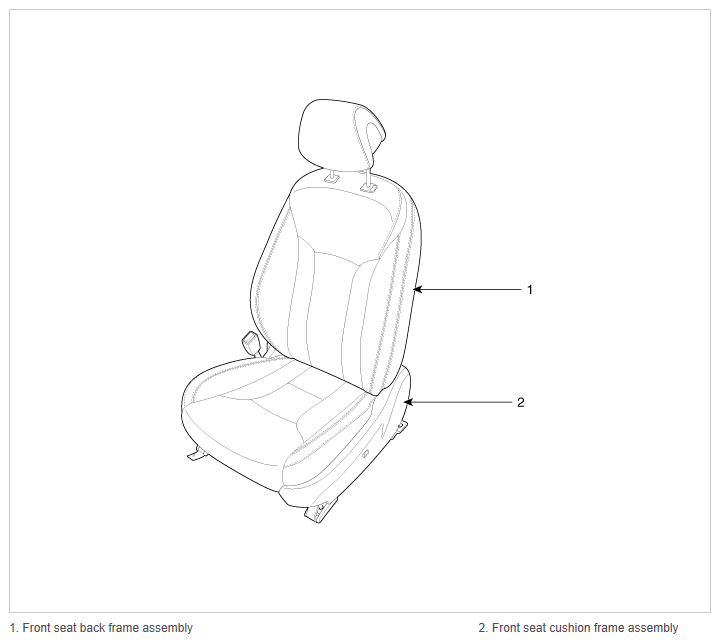

Fig 1: Locating Front Seat Back Frame Assembly And Front Seat Cushion Frame Assembly
G12091562Courtesy of HYUNDAI MOTOR AMERICA
