Components and Components Location: Components

Rear Seat Back [RH]

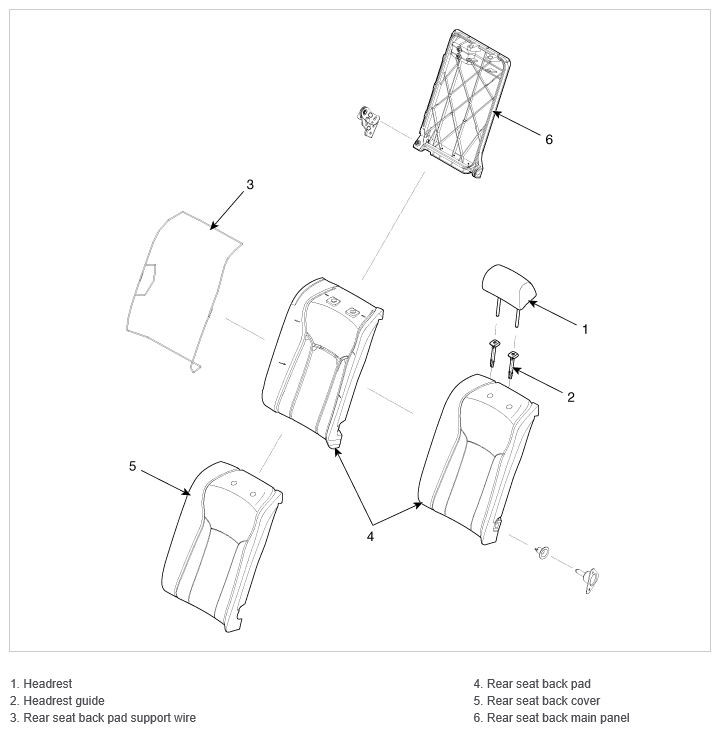

Fig 1: Rear Seat Back Components (RH)

Courtesy of HYUNDAI MOTOR AMERICA

Rear Seat Back [LH]

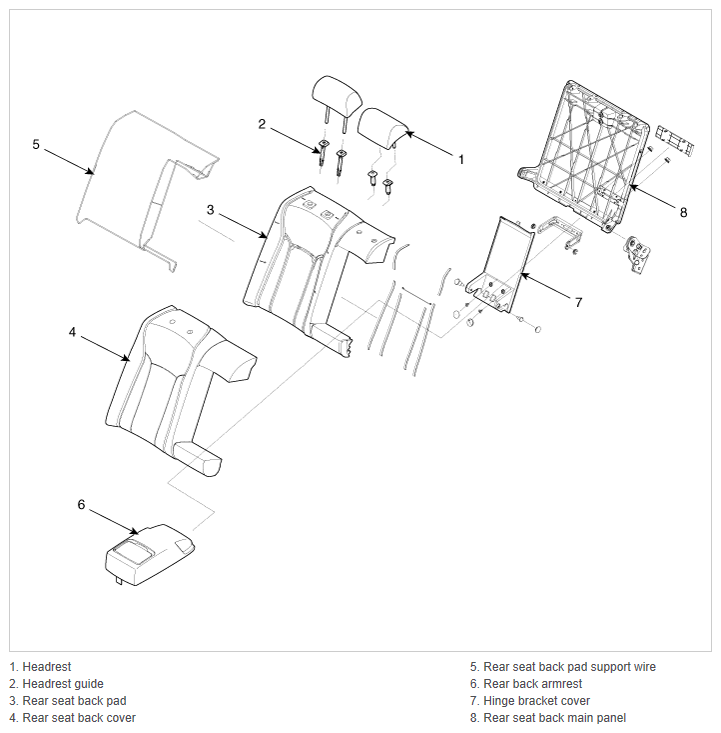

Fig 2: Rear Seat Back Components (LH)

Courtesy of HYUNDAI MOTOR AMERICA

Rear Seat Cushion

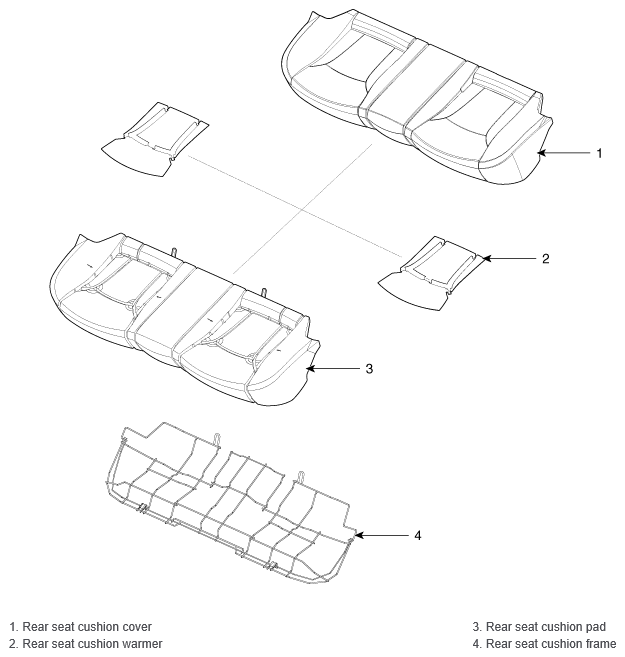

Fig 3: Rear Seat Cushion Components

Courtesy of HYUNDAI MOTOR AMERICA
