Schematic Diagrams
›
Circuit Diagram
›
Front Safety Window
Front Safety Window

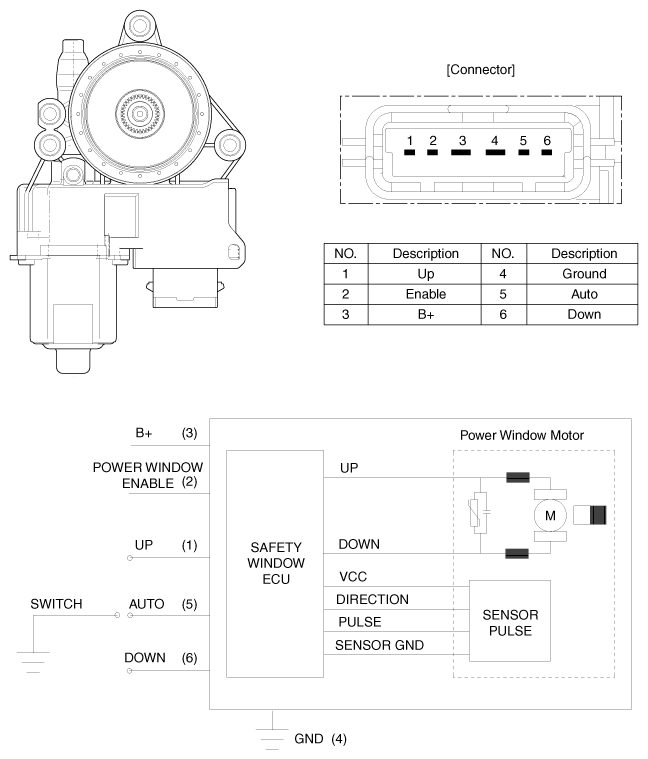

Fig 1: Power Window Motor Circuit Diagram - Front Safety Window
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
