Driver Power Window Switch (1)

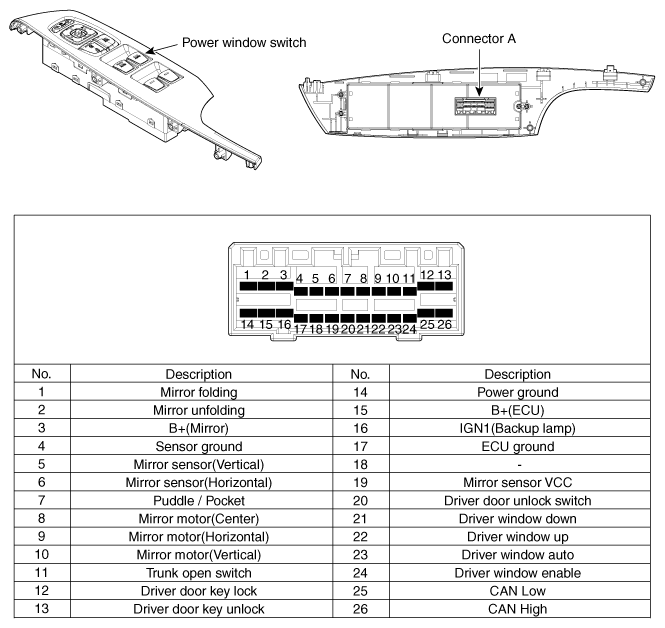

Fig 1: Driver Power Window Switch Connector Terminals
G12093046Courtesy of HYUNDAI MOTOR AMERICA
