Components And Components Location: Components

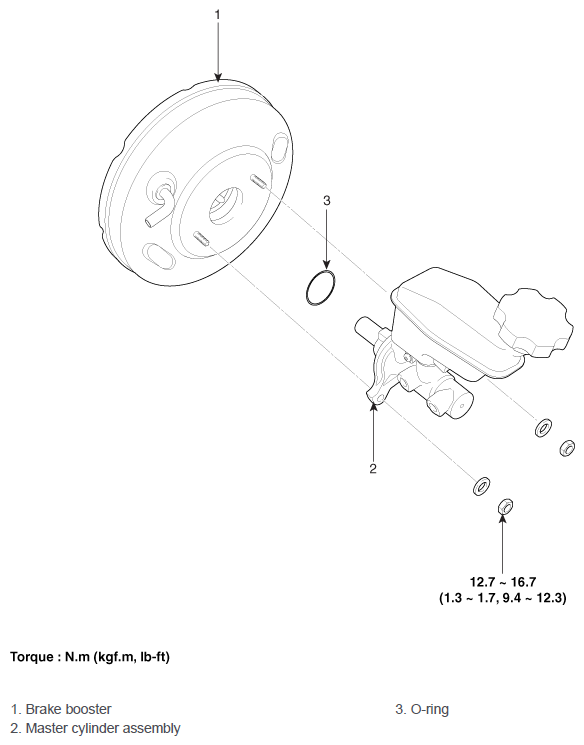

Fig 1: Brake Booster Components With Torque Specification
G12089623Courtesy of HYUNDAI MOTOR AMERICA
