Components And Components Location: Components

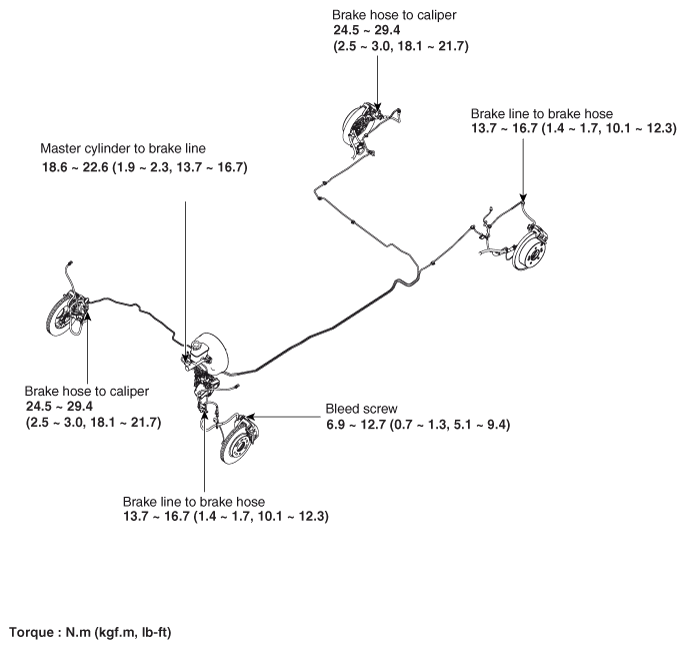

Fig 1: Brake Line Components With Torque Specification
G12089641Courtesy of HYUNDAI MOTOR AMERICA
