Components And Components Location: Components

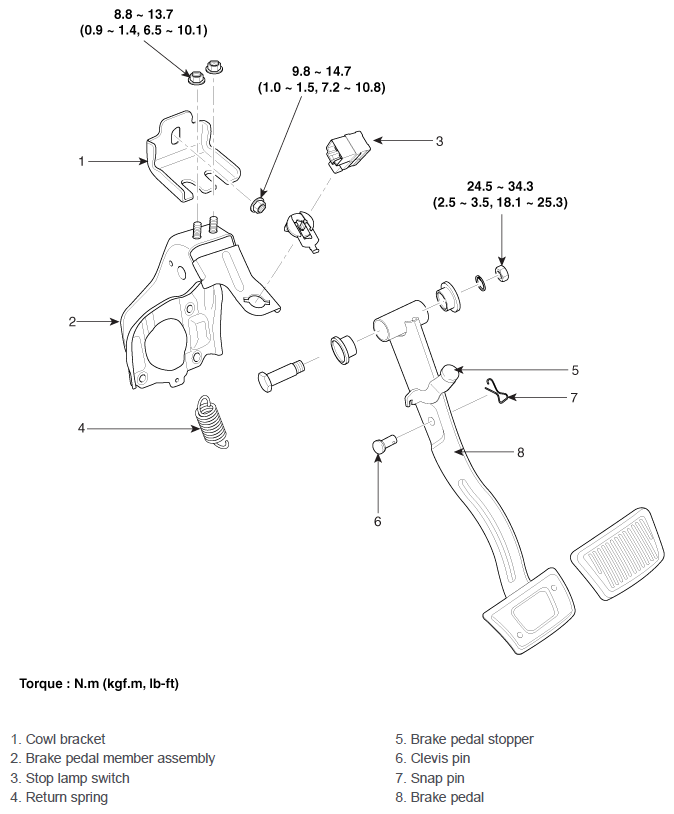

Fig 1: Brake Pedal Components With Torque Specification
G12089647Courtesy of HYUNDAI MOTOR AMERICA
