Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Brakes › Mechanical - Hydraulic › Brake System › Front Disc Brake › Components And Components Location › Components

Components And Components Location: Components

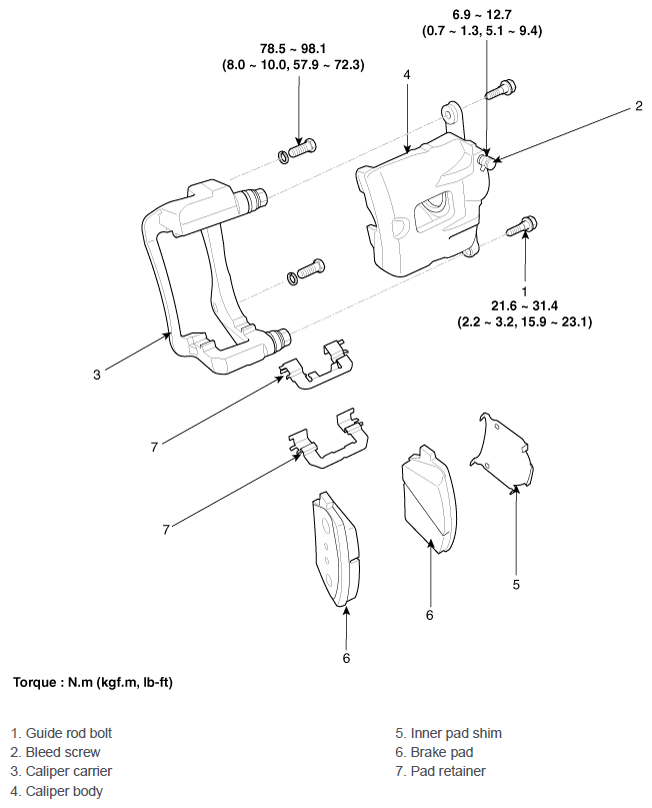

Fig 1: Front Disc Brake Components With Torque Specification
G12089666Courtesy of HYUNDAI MOTOR AMERICA
