Components And Components Location: Components

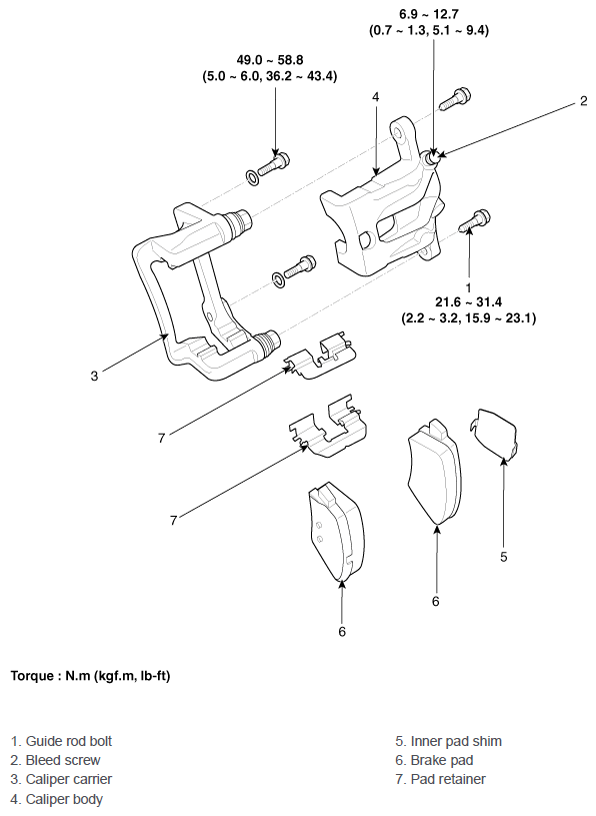

Fig 1: Rear Disc Brake Components With Torque Specification
G12089676Courtesy of HYUNDAI MOTOR AMERICA
