Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Drivelines & Axles › Axle Shafts › Driveshaft Assembly › BJ Boot › Components And Components Location › Components › [RH]

Components And Components Location: Components: [RH]

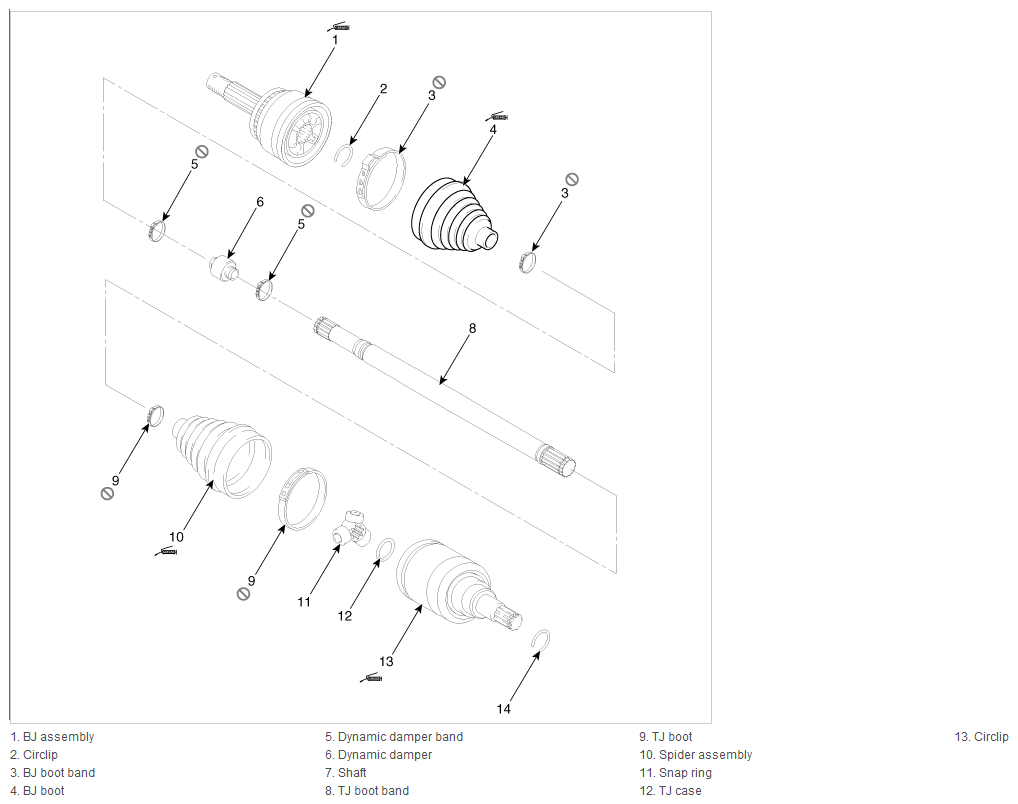

Fig 1: Exploded View Of BJ Boot Components (RH)
G12089279Courtesy of HYUNDAI MOTOR AMERICA
