Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Battery › Components And Components Location › Components

Components And Components Location: Components

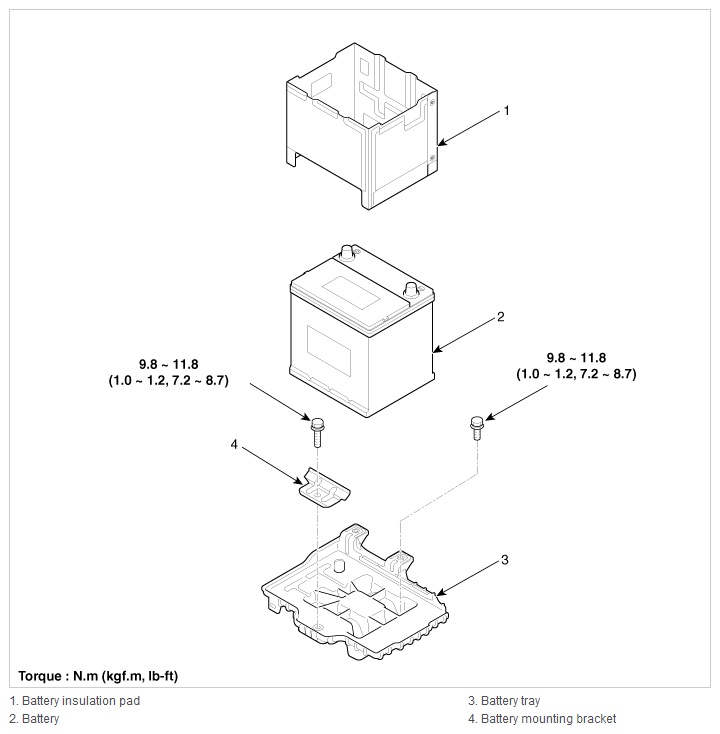

Fig 1: Battery Components With Torque Specification
G12088316Courtesy of HYUNDAI MOTOR AMERICA
