Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › ESCL (Electronic Steering Column Lock) › Components And Components Location › Component

Components And Components Location: Component

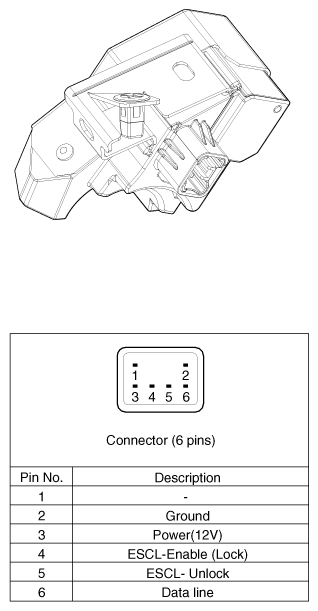

Fig 1: ESCL (Electronic Steering Column Lock) Connector Description Chart
G12093293Courtesy of HYUNDAI MOTOR AMERICA
