Components And Components Location: Components

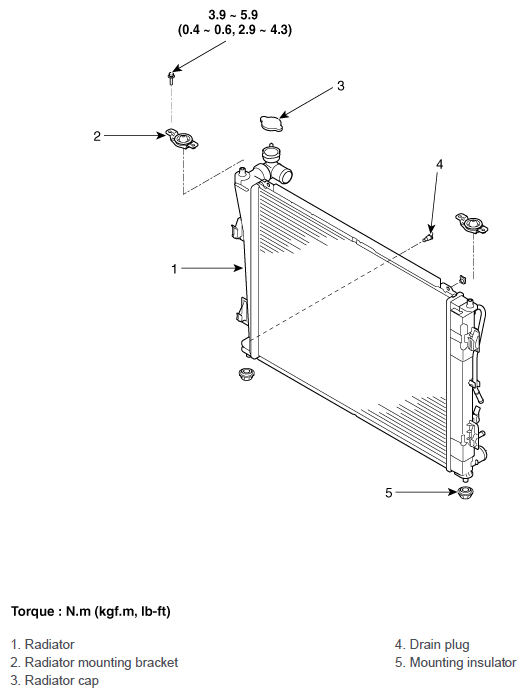

Fig 1: Radiator Components With Torque Specification
G12086999Courtesy of HYUNDAI MOTOR AMERICA
