Components And Components Location: Components

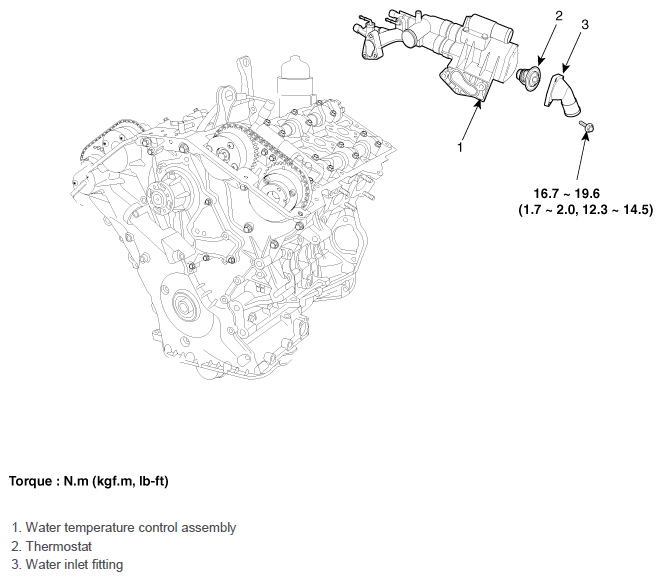

Fig 1: Thermostat Components With Torque Specification
G12087019Courtesy of HYUNDAI MOTOR AMERICA
