Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Mechanical › Cooling Fan › Engine Cooling System › Water Pump › Components And Components Location › Components

Components And Components Location: Components

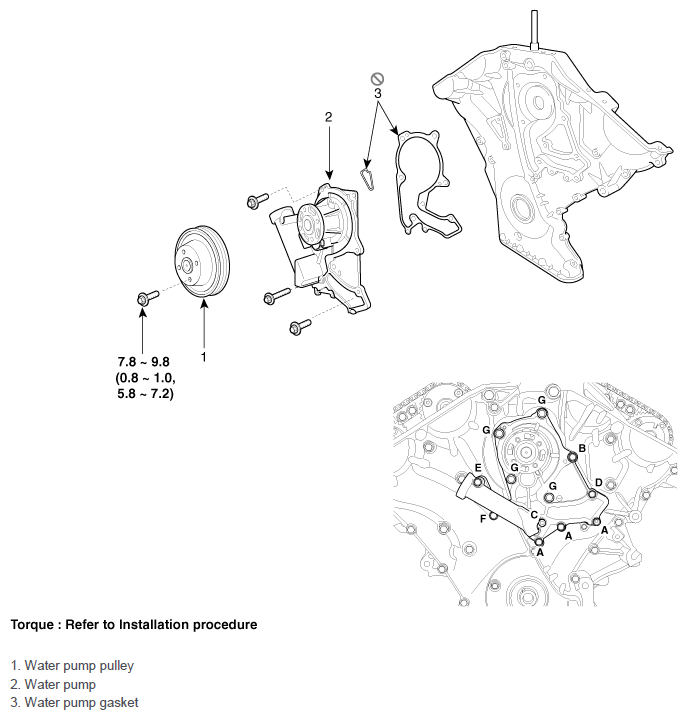

Fig 1: Water Pump Components With Torque Specification
G12087011Courtesy of HYUNDAI MOTOR AMERICA
