Components And Components Location: Components

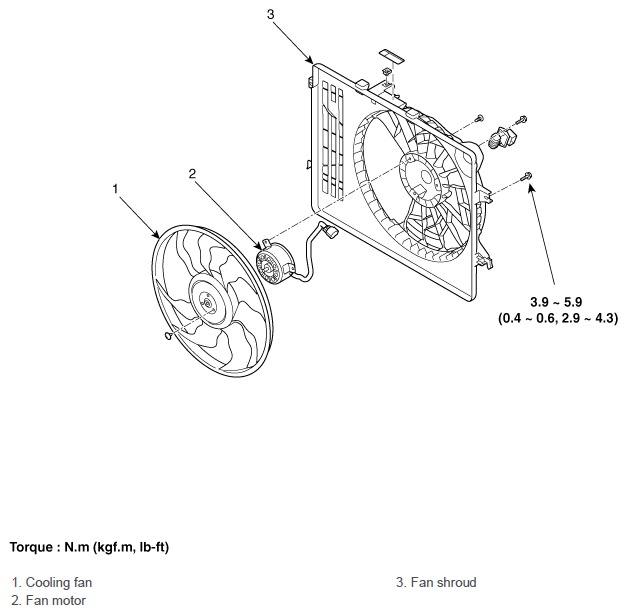

Fig 1: Cooling Fan Components With Torque Specification
G12086996Courtesy of HYUNDAI MOTOR AMERICA
