Components And Components Location: Components

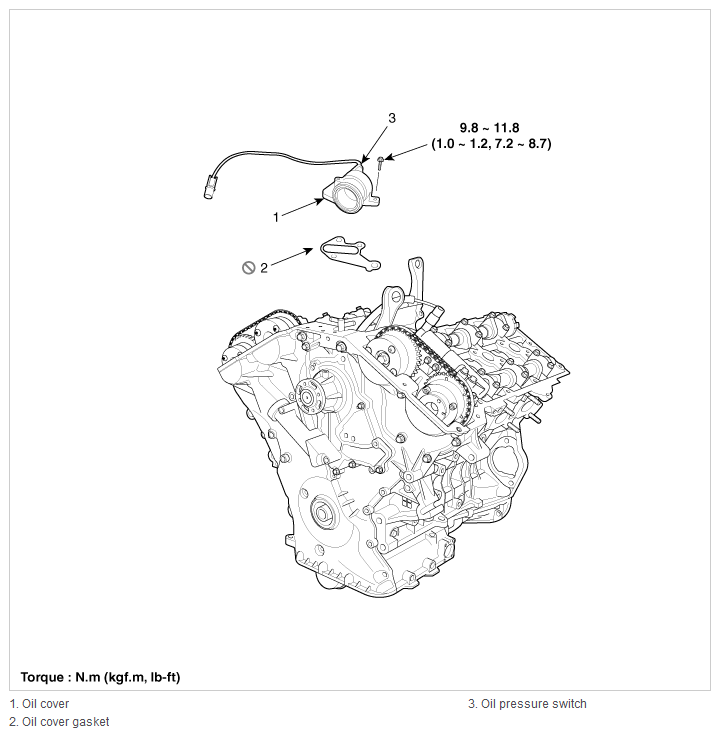

Fig 1: Oil Pressure Switch Components With Torque Specification
G12087046Courtesy of HYUNDAI MOTOR AMERICA
