Operation Principle

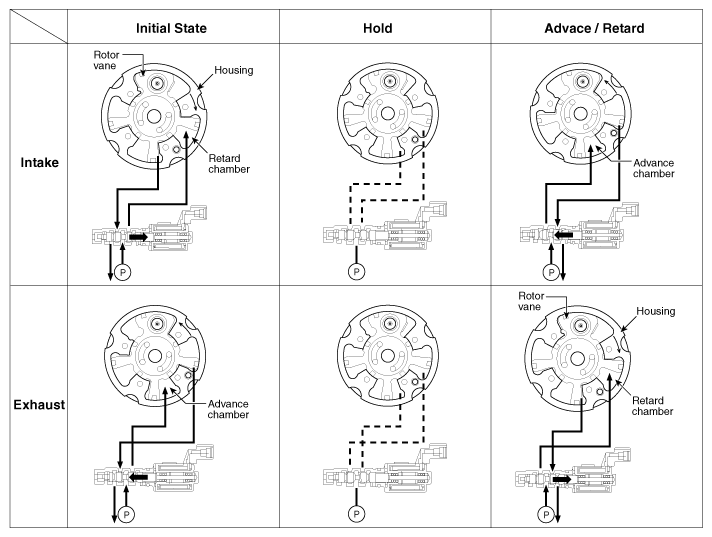

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.
Courtesy of HYUNDAI MOTOR AMERICA
