Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Mechanical › Mechanical › Timing System › Drive Belt Tensioner › Components And Components Location › Components

Components And Components Location: Components

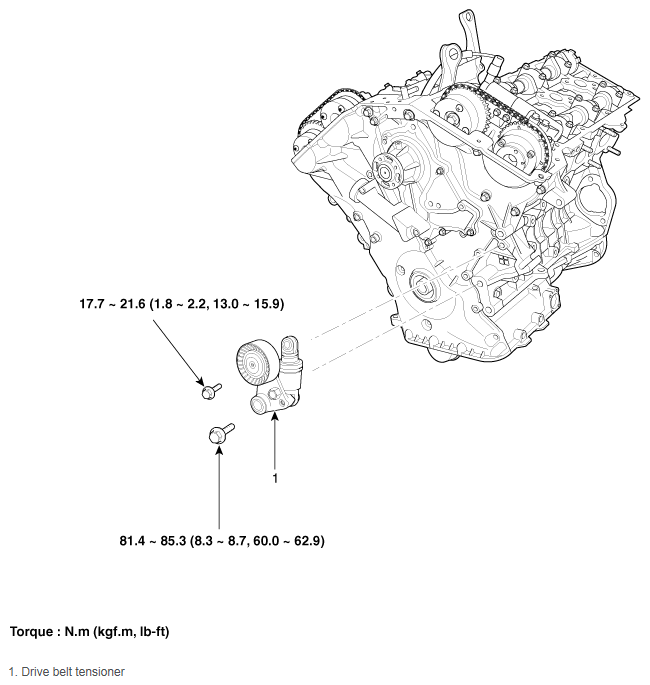

Fig 1: Drive Belt Tensioner Component With Torque Specification
G12088969Courtesy of HYUNDAI MOTOR AMERICA
