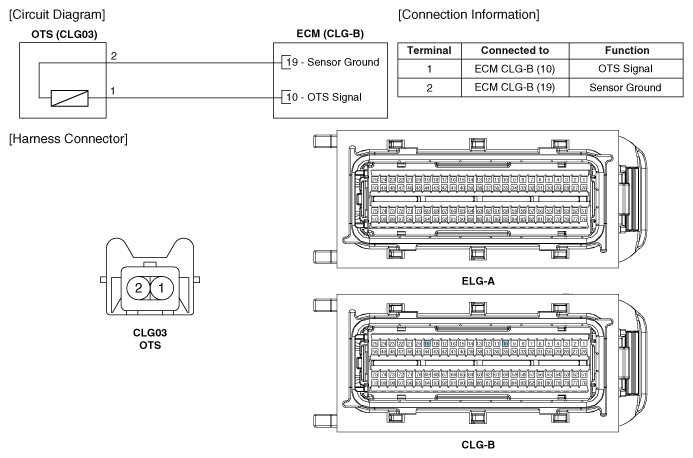

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › CVVT Oil Temperature Sensor (OTS) › Schematic Diagrams › Circuit Diagram
