Components Location

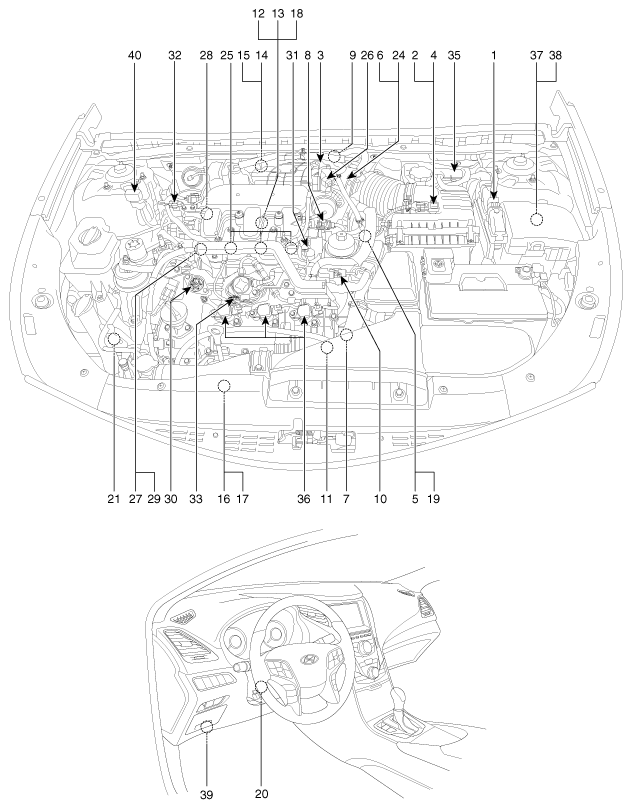

Fig 1: Engine Compartment Components (1 Of 5)

G12088444

Courtesy of HYUNDAI MOTOR AMERICA

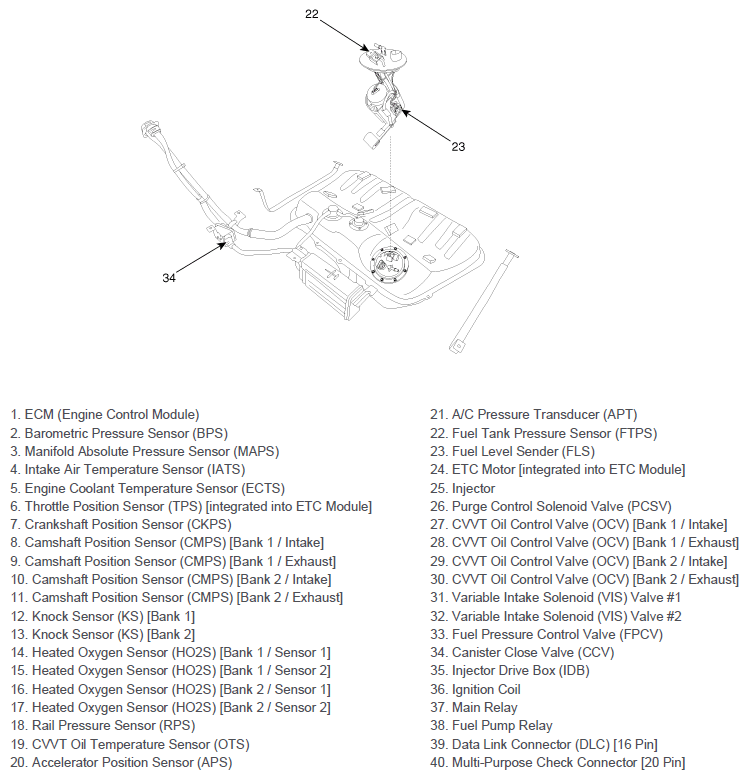

Fig 2: Engine Compartment Components (2 Of 5)

G12088445

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Engine Compartment Components (3 Of 5)

G12088446

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Engine Compartment Components (4 Of 5)

G12088447

Courtesy of HYUNDAI MOTOR AMERICA

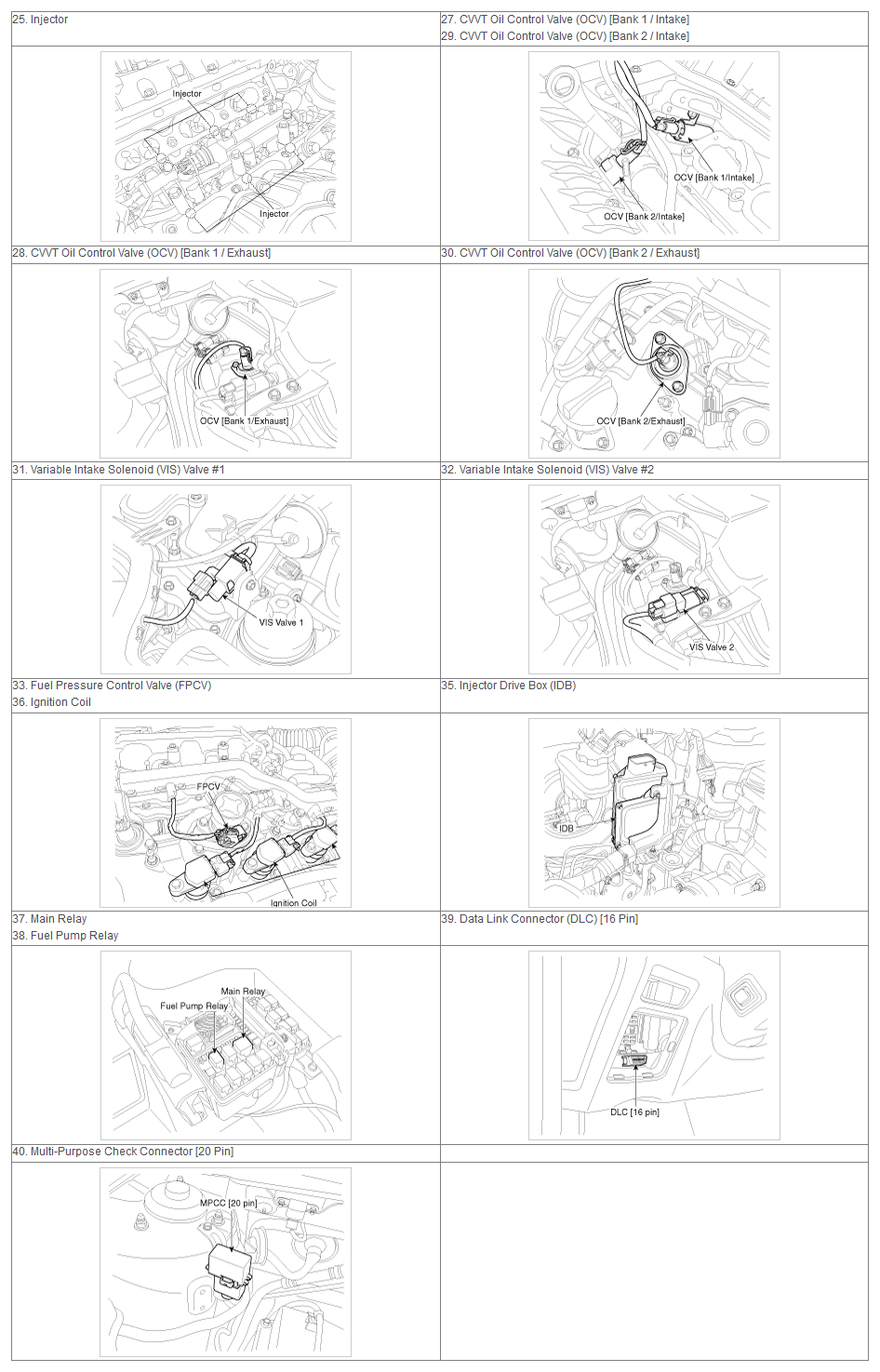

Fig 5: Engine Compartment Components (5 Of 5)

G12088448

Courtesy of HYUNDAI MOTOR AMERICA
