Component Inspection

■ Check IATS resistance

1. IG "OFF" and disconnect IATS connector.
2. Measure resistance between signal and ground terminals of IATS connector after checking out the temperature of IATS with GDS (Component Side)

   Specification:

   Temp. (°C)	Resistance (kΩ)	Temp. (°C)	Resistance (kΩ)
   -40	40.93 ~ 48.35	20	2.31 ~ 2.57
   -20	13.89 ~ 16.03	40	1.08 ~ 1.21
   0	5.38 ~ 6.09	60	0.54 ~ 0.66
   10	3.48 ~ 3.90	80	0.29 ~ 0.34

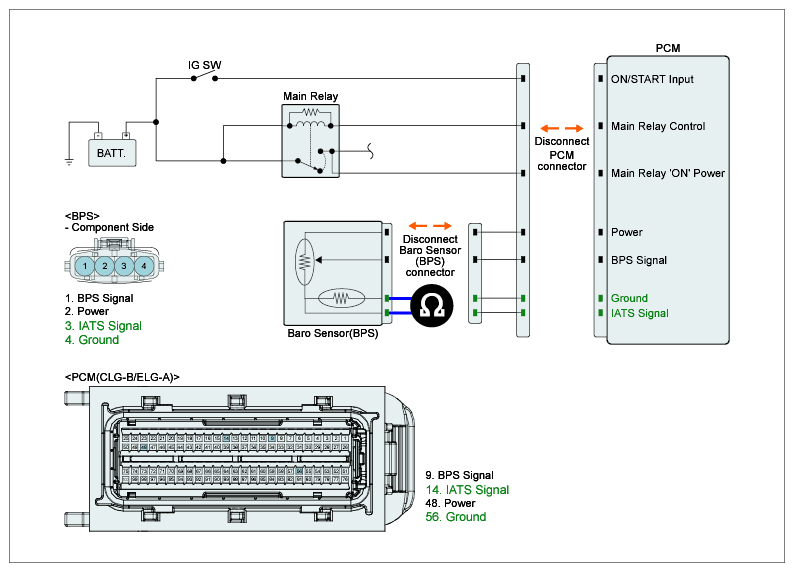

   Fig 1: Measuring Resistance Between Signal And Ground Terminals Of IATS Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known - good IATS and check for proper operation. If the problem is corrected, replace IATS and go to "Verification of Vehicle Repair " procedure.
