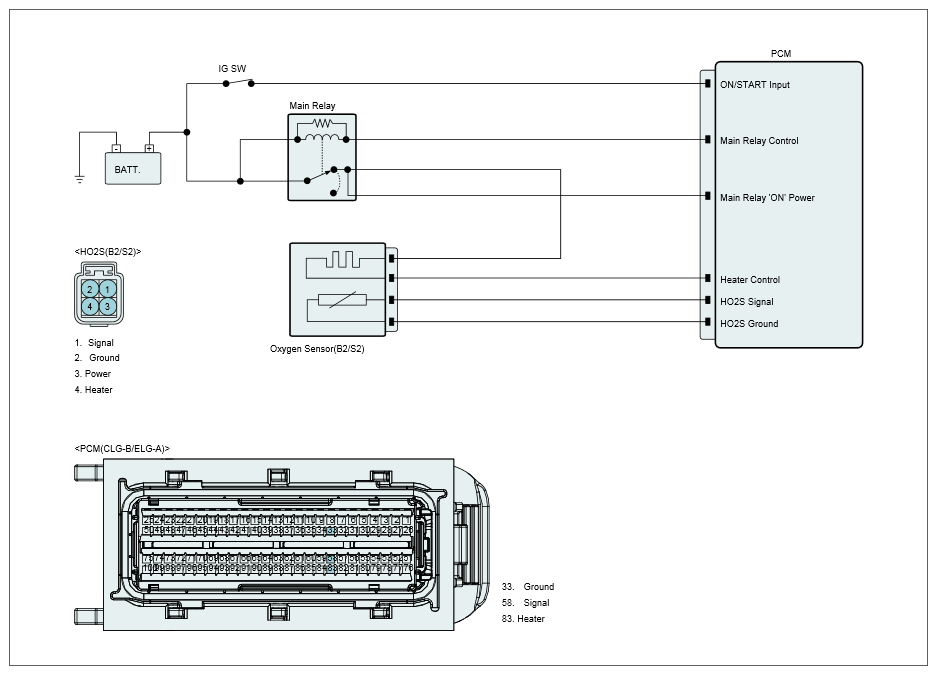

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 3) › DTC P0160: O2 Sensor Circuit No Activity Detected (Bank 2/Sensor 2) › General Information › Diagnostic Circuit Diagram
