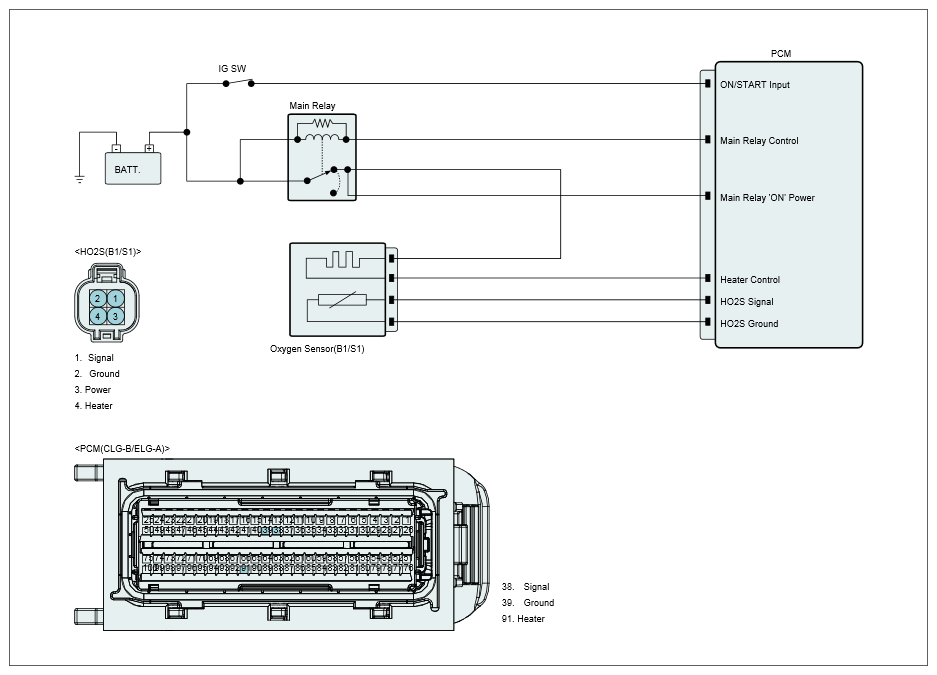

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P2196: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 1) › General Information › Diagnostic Circuit Diagram
