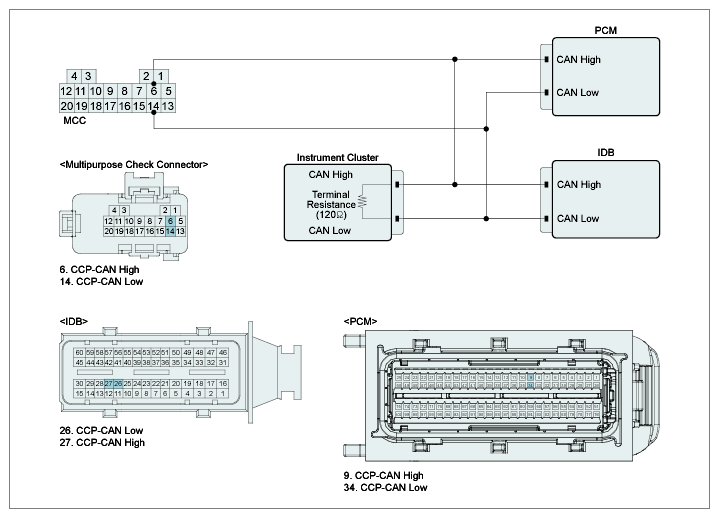

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC U0105: Lost Communication With Fuel Injector Control Module › General Information › Diagnostic Circuit Diagram
