Components And Components Location: Components

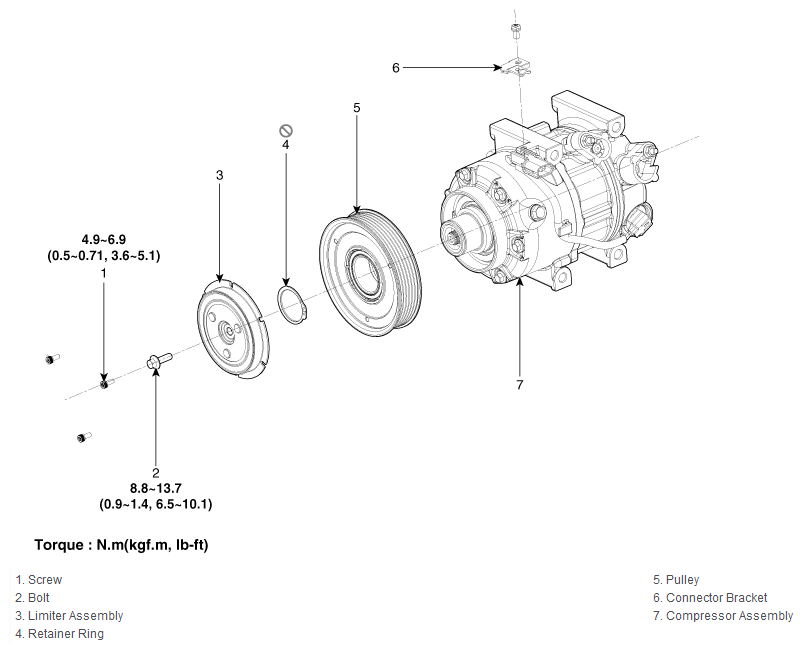

Fig 1: Compressor Components With Torque Specification
G12093370Courtesy of HYUNDAI MOTOR AMERICA
