Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Heating, Ventilation & A/C (HVAC) › HVAC Control Systems › Blower System › Blower Unit › Components And Components Location › Components

Components And Components Location: Components

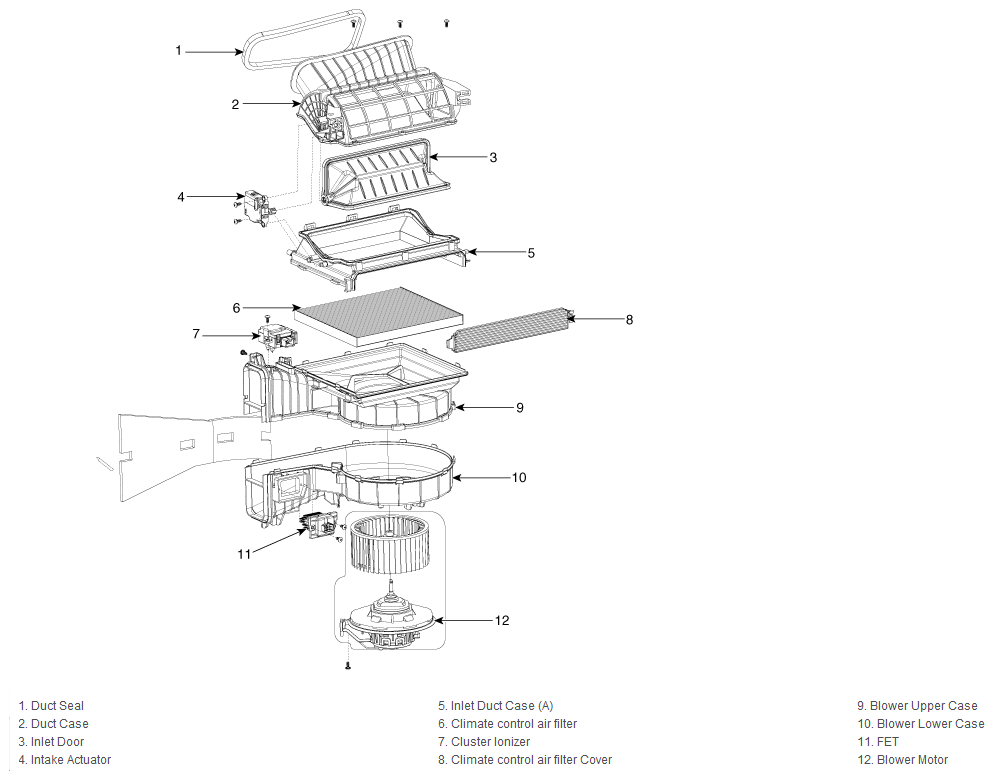

Fig 1: Blower Unit Components
G12093461Courtesy of HYUNDAI MOTOR AMERICA
