Diagnostic Circuit Diagram

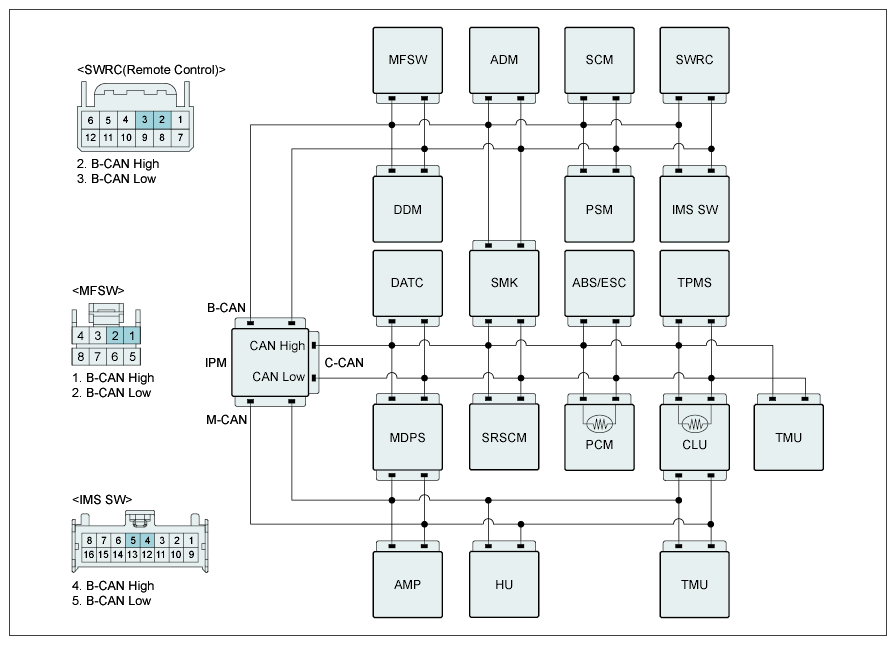

Fig 1: Steering Control Module And Intelligent Integrated Platform Module Circuit
G12090666Courtesy of HYUNDAI MOTOR AMERICA

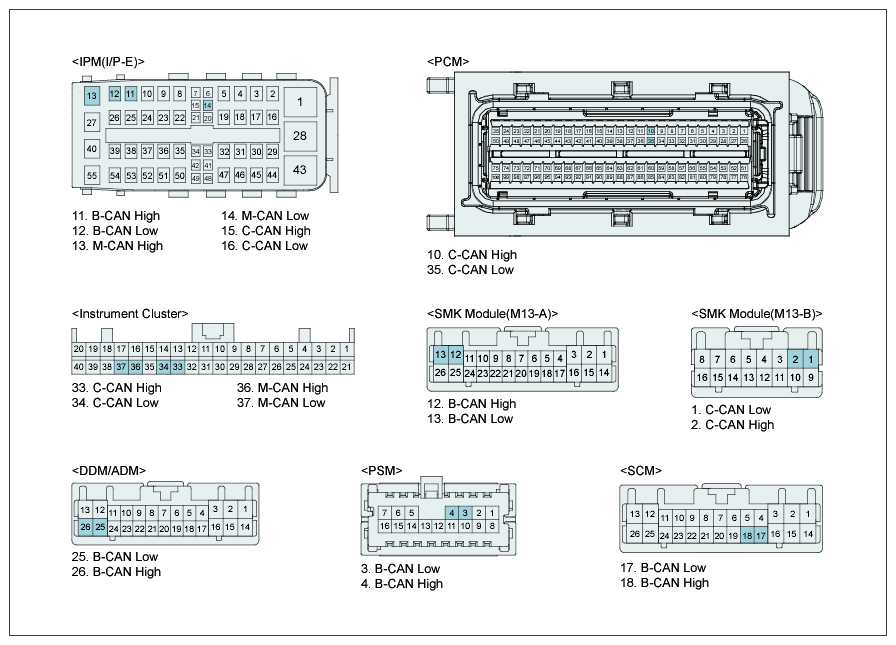

Fig 2: Steering Control Module And Intelligent Integrated Platform Module Connector Terminals
G12090667Courtesy of HYUNDAI MOTOR AMERICA
