Components And Components Location: Components

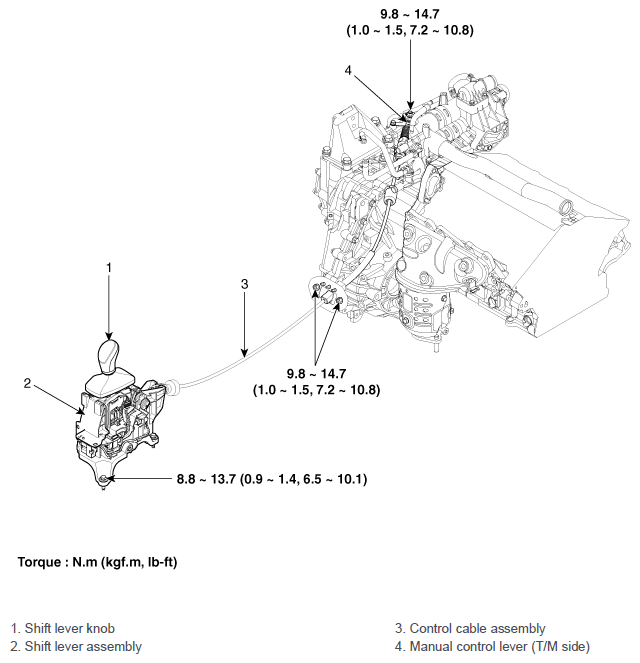

Fig 1: Shift Lever Components With Torque Specification
G12088842Courtesy of HYUNDAI MOTOR AMERICA
