Circuit Diagram

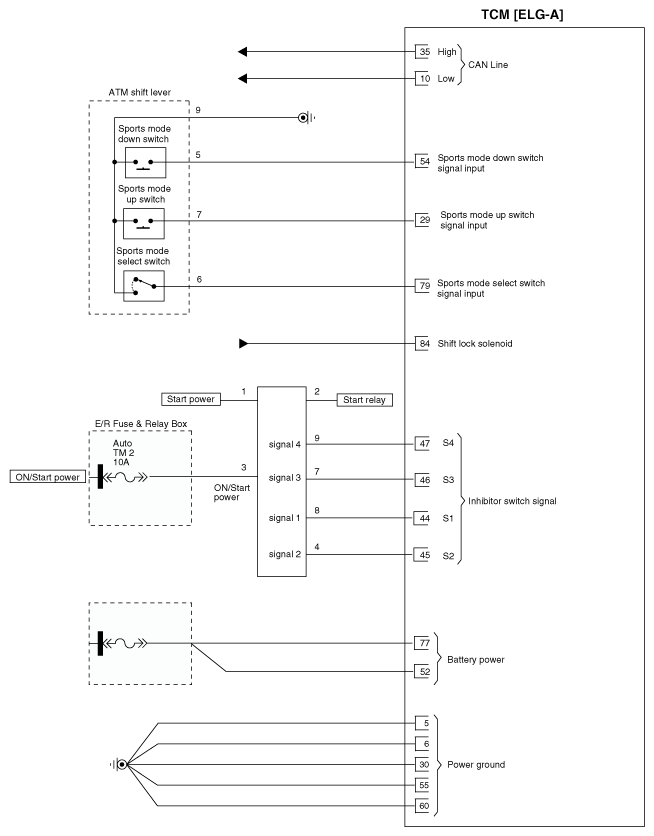

Fig 1: TCM Circuit (1 Of 2)
G12088705Courtesy of HYUNDAI MOTOR AMERICA

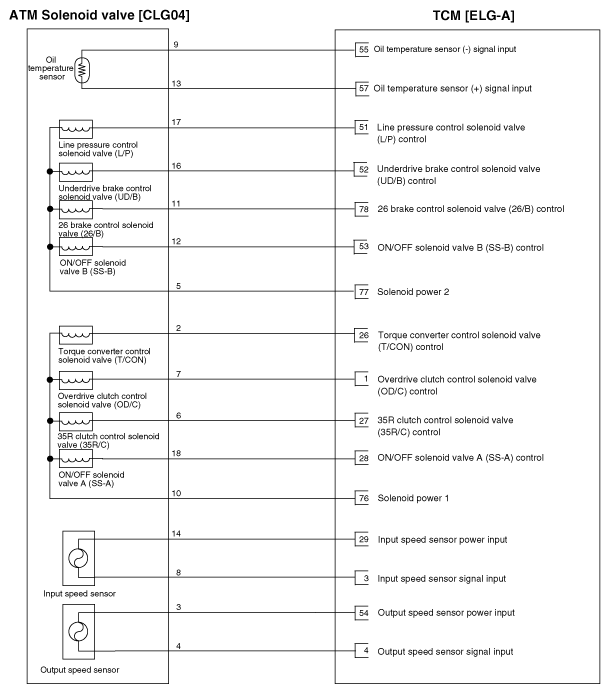

Fig 2: TCM Circuit (2 Of 2)
G12088706Courtesy of HYUNDAI MOTOR AMERICA
