Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transmission Assembly (R & I) › Engine Room Under Cover › Components And Components Location › Components

Components And Components Location: Components

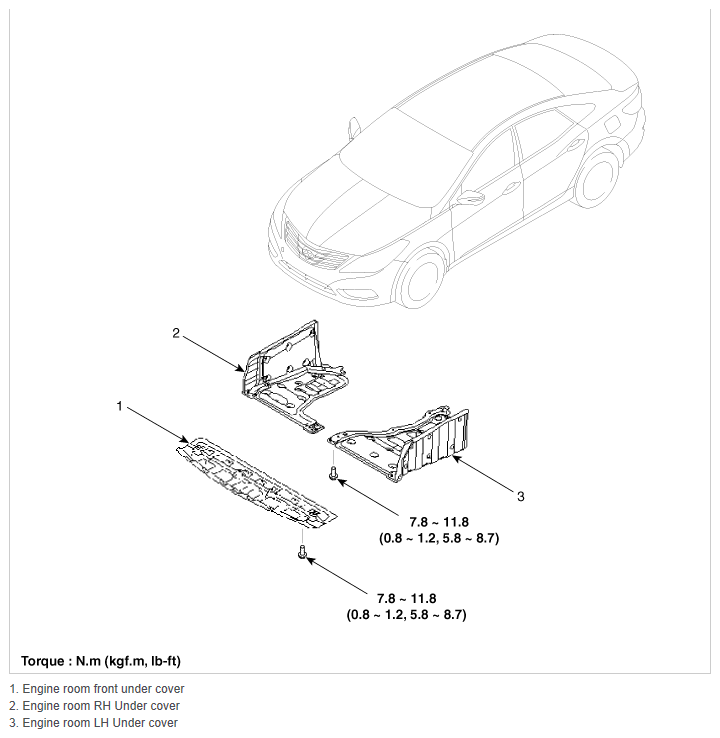

Fig 1: Engine Room Under Cover Components With Torque Specification
G12086966Courtesy of HYUNDAI MOTOR AMERICA
