Components And Components Location: Components: Notes

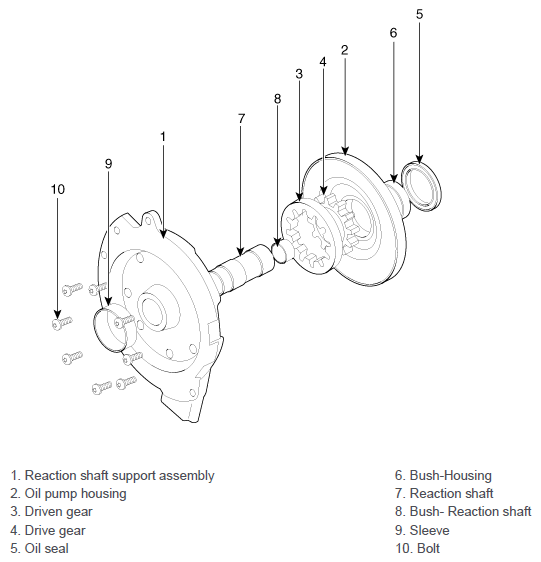

Fig 1: Oil Pump Components
G12088675Courtesy of HYUNDAI MOTOR AMERICA
