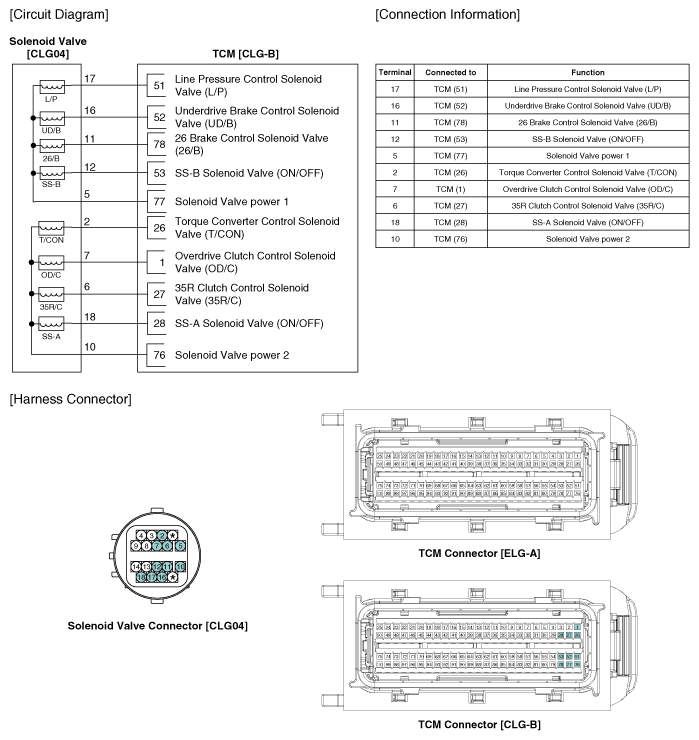

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Overdrive Clutch Control Solenoid Valve (OD/C_VFS) › Schematic Diagrams › Circuit Diagram
