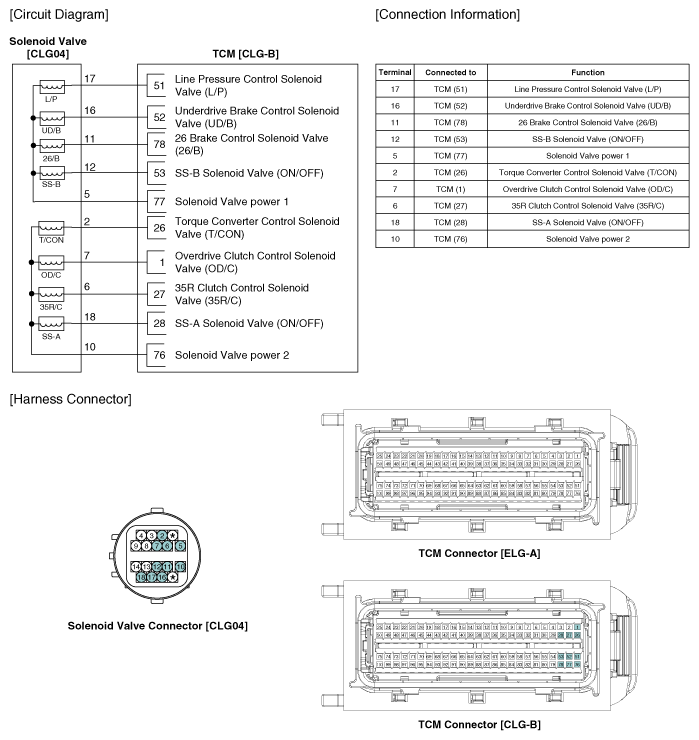

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › SS-A Solenoid Valve (ON/OFF) › Schematic Diagrams › Circuit Diagram
