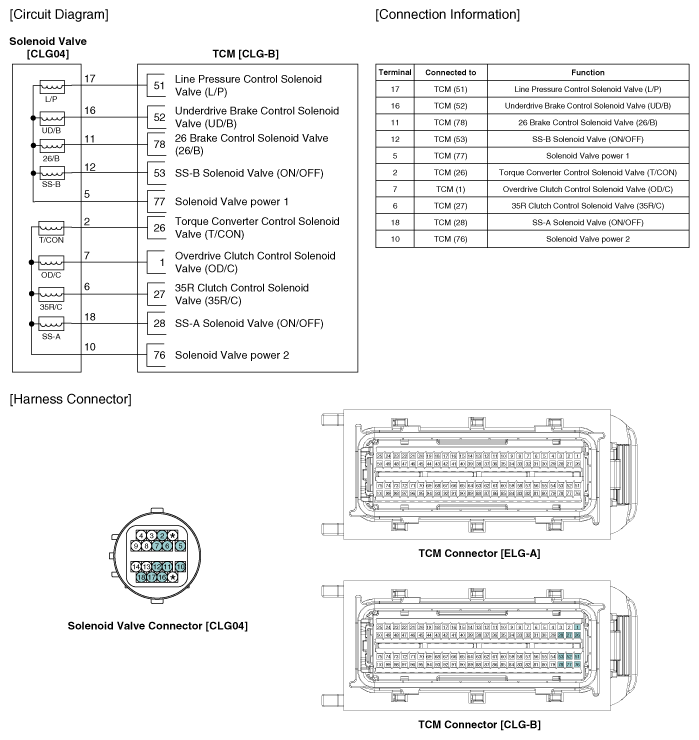

Home › Hyundai › 2017 › Azera Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Underdrive Brake Control Solenoid Valve (UD/B_VFS) › Schematic Diagrams › Circuit Diagram
