Components And Components Location: Component

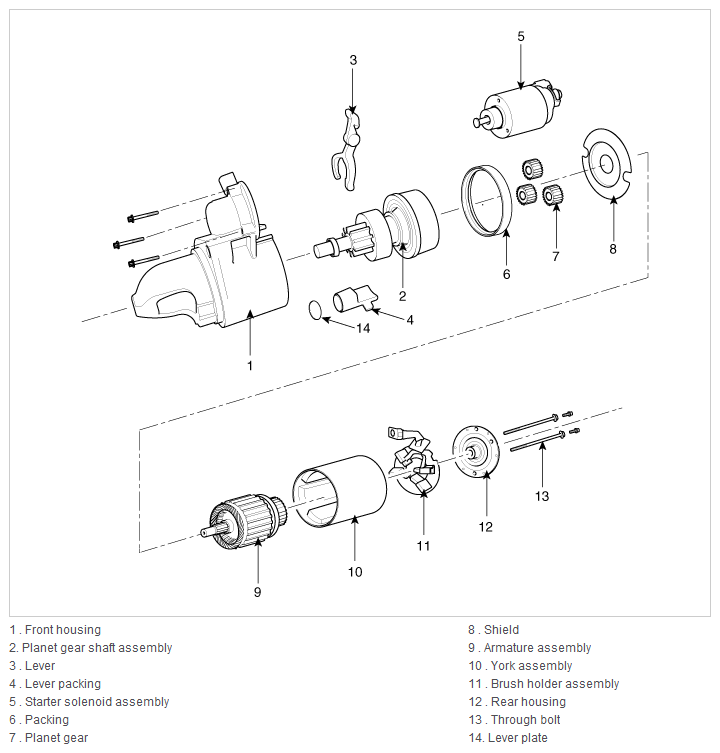

Fig 1: Exploded View Of Starter Components
G12088329Courtesy of HYUNDAI MOTOR AMERICA
